High-Performance Multi-Disc Filter Central Shaft for Vacuum Filtration Systems and Solid-Liquid Separation Applications

Product Description

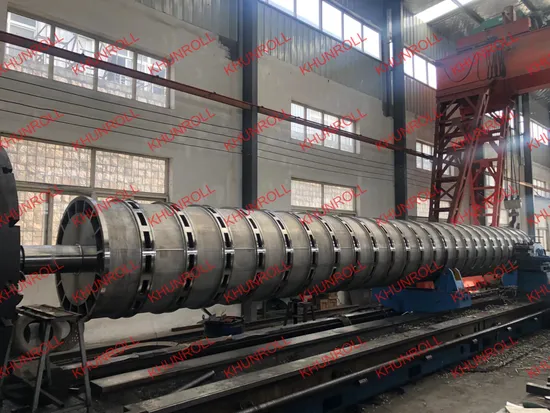

Central Shaft of Multi-Disc Filter
Parameter
Product Photo

The central shaft in a multi-disc filter is a critical structural and functional component, serving as the backbone of the filtration system. It integrates the rotational drive, vacuum transmission, filtrate discharge, and structural support for the filter discs, ensuring smooth and continuous operation during solid-liquid separation processes.
Structure and Features of the Central Shaft: Hollow and Partitioned Design:
The central shaft features a hollow interior with precision-engineered vacuum channels and filtrate discharge pathways. Internal zones correspond to each filtration disc, independently distributing vacuum suction to enhance filtration efficiency while preventing cross-interference. High-Strength Construction:
Manufactured from materials such as stainless steel, carbon steel, or corrosion-resistant alloys, the shaft provides excellent mechanical strength, wear resistance, and durability under harsh industrial conditions. Vacuum and Filtrate Pathways:
The shaft efficiently delivers vacuum suction to the discs via internal vacuum channels, enabling effective solid-liquid separation. Collected filtrate is discharged through integrated filtrate pathways, reducing energy losses and ensuring efficient liquid outflow. Drive System Integration:
The central shaft connects seamlessly to a motor and gearbox system, transmitting rotational motion to the filtration discs for continuous operation. Both ends are supported by high-precision bearings to ensure smooth rotation with minimal mechanical wear and vibration. Sealing Mechanism:
Advanced sealing systems at vacuum and bearing interfaces prevent leaks, ensuring the integrity of vacuum transmission and long-term performance. Customizable Dimensions:
Shaft diameter, length, and internal channel configurations can be customized to suit different equipment sizes and filtration requirements. Working Principle of the Central Shaft: Rotational Drive:
Powered by the drive system, the central shaft rotates the filtration discs, immersing part of the discs into the slurry for filtration while allowing dewatering and cake removal in the exposed section. Vacuum Transmission:
Internal vacuum channels distribute suction to the discs, drawing the liquid through the filter cloth and enabling efficient solid-liquid separation. Filtrate Discharge:
The separated filtrate flows through the discs into the central shaft and is discharged through internal pathways for downstream processing. Mechanical Support:
The shaft provides structural stability for the rotating discs, ensuring alignment and preventing deformation during continuous operation. Technical Advantages of the Central Shaft: Durability and Strength:
High-strength, corrosion-resistant materials ensure longevity in high-load, high-pressure, and chemically aggressive environments. Efficient Vacuum Control:
Precision internal channels distribute uniform vacuum suction, enhancing filtration performance and reducing energy losses. Optimized Filtrate Flow:
The shaft's streamlined internal pathways ensure smooth filtrate discharge, minimizing flow resistance and maximizing efficiency. Precision Sealing:
Robust sealing systems maintain vacuum integrity and protect bearings, reducing maintenance requirements. Low Maintenance:
Modular and accessible design allows for easy inspection, cleaning, and replacement, minimizing downtime. Core Functions of the Central Shaft: Power Transmission: Drives the filtration discs through rotational motion. Vacuum Distribution: Delivers suction to the discs for solid-liquid separation. Filtrate Collection: Collects and discharges filtrate efficiently. Mechanical Support: Stabilizes and aligns filtration discs during operation. Performance Optimization: Enhances overall filtration efficiency and reliability. Applications of the Central Shaft: The central shaft is widely applied in pulp and paper processing, wastewater treatment, chemical processing, and mineral separation industries, where multi-disc filters are essential for high-efficiency solid-liquid separation.
Summary: The central shaft of a multi-disc filter serves as the key driving, supporting, and vacuum-distributing component of the system. Its hollow design, robust construction, and precision engineering ensure stable, efficient, and long-lasting operation in demanding industrial filtration processes. By optimizing power transmission, vacuum delivery, and filtrate discharge, the central shaft directly enhances the overall performance and reliability of the multi-disc filter.
Our company also offers semi-customized and fully customized solutions. We specialize in the design and production of a wide range of paper machinery and related products.
