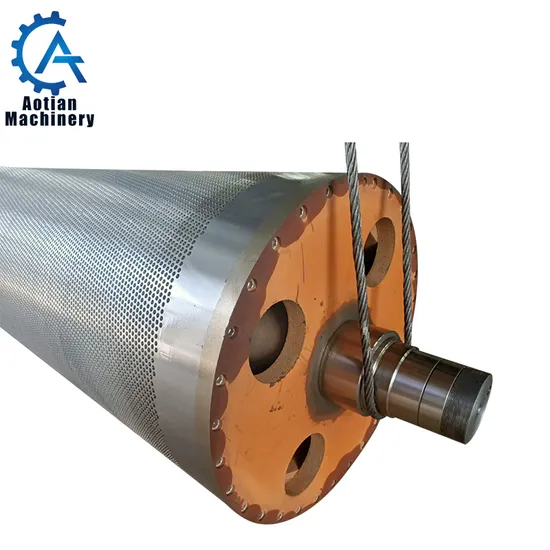

Paper Making Felt Press Roller Vacuum Suction Roll

Product Description

Paper making felt press roller vacuum suction roll Please read down The vacuum suction roll is a key equipment in the press section, and its function is to transfer the paper sheet after the wire section is formed to the press section. Whether it is normal is very important to the stable operation of the paper machine.They are mainly composed of a rotating cylinder, a vacuum box inside the cylinder, a bearing support device, and a transmission device.The vacuum suction roller is used for sealing and guiding the paper. The material of the roller body: ZQsn10-2,roller face:no rubber, with graphite sealing strip and water spray tube inside.
The vacuum box body is made of cast iron, and the vacuum suction sealing strip is a graphite sealing strip, which is pressed on the inner wall of the roller through a pneumatic tire to achieve a sealing effect. The inclination of the cabinet can be adjusted according to actual needs.
In order to reduce the resistance to disassembly and assembly of the vacuum box, rollers are installed at the bottom of the vacuum box on the transmission side. The panel of the shaft head on the operating side is equipped with a pressure gauge, a vacuum gauge, a water and air hose connector, and an amplitude adjustment screw. When adjusting, you can rotate the operating side and drive side width door adjusting screws respectively. The screw rotates one round and the sealing block moves 4 mm. The operating side bearing seat is equipped with a worm gear drive to adjust the position of the suction port. There is a suction port position indicator on the panel.

Shell material	SST/Cast Iron
Hardness	HRC40-68 Degree
Holes diameter	0.4mm
Loading capacity	3000KG
Diameter	500mm
Length	4500mm
Chemical resistance	High alkaline
Customized	Accepted
