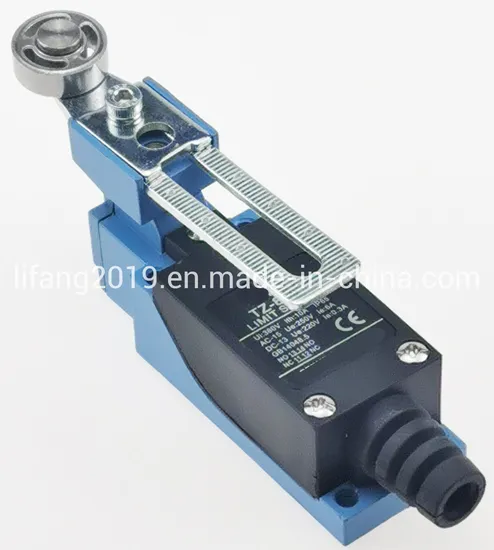

Tz-8108 Limit Switch; Tz-8108 Limitting Switch; ISO9001 Proved Limit Switch

Tz-8108 Limit Switch; Tz-8108 Limitting Switch; ISO9001 Proved Limit Switch

US$1.95
100-999 Pieces
US$1.90
1,000-4,999 Pieces
US$1.95
5,000+ Pieces

Basic Info.

Model NO.
TZ-8108
Certification
CE, ISO
Switching Element
Slow Break Switch
Application
Harbor
Contactless Type
Inductive Switch
Contact
Contact
Model Number
Tz-8108,Tz-8109
Operating Temperature
-20~+70ºC(with No Icing)
Operating Frequency
Electical:30 Operations/Min
Vibration
10~55Hz,1.5mm Double Amplitude
Humidity
<95%Rh
Inrush Current
N.C:Below 24A, N.O:Below 12A
Electrical Life
500,000 Operations Above
Max. Voltage
380VAC
Operating Speed
5mm-0.5m/S
Transport Package
Box Ctns
Specification
250VAC
Trademark
LFE
Origin
China
HS Code
8536500000
Production Capacity
1000, 000 PCS/Year

Product Description

Product Model: Limit Switch (TZ-8108)
Specifications
Current: 2A
Voltage: 250VAC/45VDC
CE, ISO9000 Certificate
Characteristics
Operation speed: 1mm-2m/s
Operating frequency: Mechanical: 120 operations/minute Electical: 30 operations/minute
Contact resistance: 15m ohm max. (initial value)
Insulation resistance: 100m ohm above (at 500VDC)
Dielectric strength: 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity
1500VAC, 50/60 Hz for 1 minute between currentcarrying and non-current-carrying metal parts
1500VAC, 50/60 Hz for 1 minute between each terminal and ground
Vibration: 10-55Hz, 1.5mm double amplitude
Shock: Mechanical durable: 1, 000m/Sec2 (about 100G'S)
Malfunction: 300m/Sec2 (about 30G'S)
Ambient temperature: -10° C to +80° C
Humidity: <95% RH
Life: Mechanical: 15, 000, 000 operations above (under rated OT)
Electrical: 500, 000 operations above
Degree of protection: IP67
Contact Form
NO (4) (3) NO
NC (1) (2) NC
FAQ 1. SAMPLE available?Yes, usually we provide samples for free. Only charges the customized sample in special cases.2. What about the LEAD TIME?Sample can be ready within 3 working daysBulk orders for standard models: 5-25 working daysOEM or ODM orders: depend on final quantity and specifications.3. Do you accept OEM or ODM?Yes, please feel free to contact our sales for further details.4. What about the PACKING?Single package in paper box→export carton box Other customized packages, like wooden package can berequired if you need.5. How can I make PAYMENT?T/T bank transfer is also acceptable for USD and CNY currency.6. What about SHIPMENT?Usually will be Air/Sea transportation, door to door express service is available for small packages.7. What about the WARRANTY?12 months for product, but our after service is always effective as long as customer needs.
