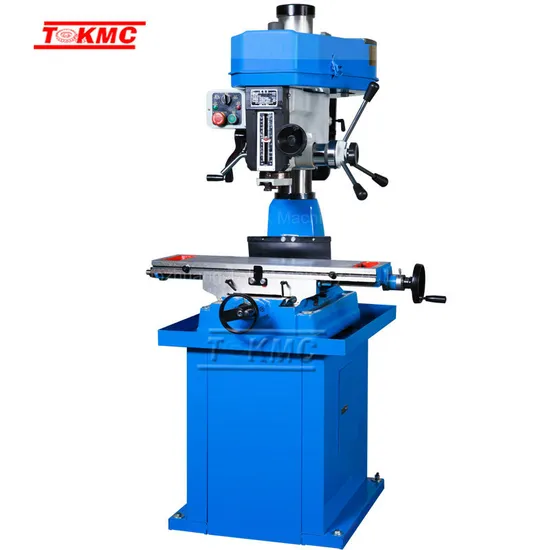

Drilling and Milling Machine /Swivel Head Drilling Milling Machine Zx7032
| US$2,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX7032
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Name
Zx7032 Milling /Drilling Machine
Max. Drilling Capacity
31.5 mm
Max. Face Milling Capacity
80 mm
Diameter of Vertical Milling
22mm
Table Travel
450X170 mm
Spindle Taper
Mt3
Spindle Speeds Range
100-2150 Rpm
Spindle Speeds Series
12 Steps
Spindle Travel
130mm
Weight
250 Kg
Transport Package
86X74X116 Cm
Specification
250 kg
Trademark
tokmc
Origin
China
HS Code
84592900
Production Capacity
100 Sets/Year
Product Description
zx7032 milling machine| Model | ZX7032 | ZX7045 | ZX7045B1 | ZX7040B | |
| Max. Drilling capacity | mm | 31.5 | 45 | 45/32 | 40/32 |
| Max. face Milling capacity | mm | 80 | 80 | 80 | 80 |
| Diameter of vertical milling | mm | 22 | 28 | 28 | 22 |
| Spindle travel | mm | 130 | 120 | 110 | 110 |
| Distance spindle axis to column generating line | mm | 202 | 260 | 260 | 260 |
| Max. Distance spindle nose to table | mm | 460 | 475 | 475 | 475 |
| Spindle taper | MT3 | MT4 | MT4 R8 | MT4 R8 | |
| Spindle speeds range | r/min | 100~2150 | 95~1600 | 50-1250 50-2500 | 50~1250 50~2500 |
| Spindle speeds series | 12 | 6 | 6/12 | 6/12 | |
| Dimension of worktable surface | mm | 730X210/ 820X240 | 820x240 | 730x210 | |
| Table travel | mm | 450X170 540X170 | 540x170 | 450x170 | |
| Overall height | mm | 1100 | 1050 | 1100 | 1100 |
| Main motor | w | Single110 Triple 1500 | 1500 | 1100 1500 | |
| G.W/N.W | kg | 285/250 | 318/278 | 405/360 | 390/350 |
| Packing dimension | cm | 86x74x116 97x77x116 | 86x74x116 97x77x116 | 104x77x116 | 96x74x116 |
