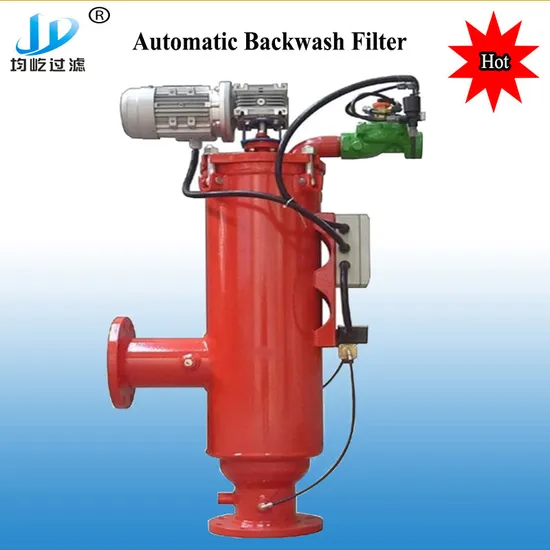

80m3/H Industrial Automatic Backwash Brush Self-Cleaning Filter for Water Purification

Product Description

Introduction of Self cleaning Filter
The Self-cleaning Filter is a kind of more precise filter, which is consist of the high strength filter screen and the stainless steel scraping brush. The filtration, cleaning and slag discharge will be realized by manual control or automatic control to achieve the purpose of purification.
Working Principle of Brush Automatic Self-cleaning Filter 1. After the liquid flows into the filter housing through the inlet, the filtration will be realized from the inside of the metal screen to the outside. Then the impurities will be blocked on the internal surface.
2. When the pressure difference between the inlet and outlet reaches the set value or the timer reaches the set time, the controller will send a signal to drive the motor to rotate the brush for cleaning. At the same time, the drain valve will be opened. With the scrapping of the metal brush or nylon brush, the impurity particles adsorbed on the screen will fall down and be discharged with the water from the drain valve.
3. After the cleaning has been finished, the motor will stop running. During the whole process, the material flows continuously, realizing the continuous and automatic production.
Advantages of Self-cleaning Filter

1.	High-efficiency, high-flow screen filtration in a compact footprint.
2.	Flow rates from 25-1200T/H.
3.	Micron ratings from 10-3000um.
4.	Suitable for light solids less than 100ppm.
5.	Continuous automatic operation without interruption.
6.	All stainless steel construction.

Technical Specifications
Different Parts of the Self-cleaning Filter
Application
Service Cases
Company Profile and Certifications
Method of Payment and Shippment
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are the factory and can customize the self cleaning filter according to your detailed requirements.
Q: What is your MOQ?
A: One piece sample is acceptable. More quantities, more favorable price.
Q: Are customized products accepted ?
A: Yes, we support any of your innovative idea and will also provide you the filtering scheme for your reference.
Q: Do you provide samples ?
A: We can produce a small sample for your test with charge at our production cost.
Q: Do you accpet OEM ?
A: Yes, we can produce the filters according to your requirement.
Q: Any discount possible if I place an order ?
A: Yes, we have different price discounts based on different purchasing quantities..
Q: How long is your delivery time?
A: It depends on which kind of the products it is and the ordered quantity. But we promise that we will try out best to finish all of your orders within the shortest time.
Q: Term of Payment
A: We accpet T/T, L/C, Western Union, Paypal or Cash.
Q: Test before leaving from our factory
A: Every kinds of our filter will be made the pressure test to assure it is qualified before leaving from our factory.
Q: Quality warranty
A: Our warranty is 1 year. But normally, our machine can work more than 5 years before repair.
