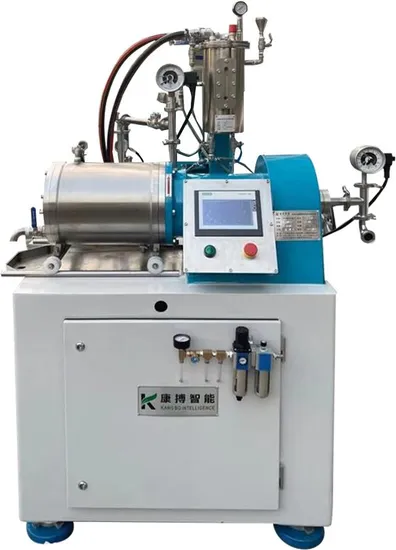

Nano & Sub-Micron Scale Bead Mill / Knb-S Series

Product Description

Features Adapt to 0.1-0.2mm grinding media, suitable for ultra-fine grinding above 100nm Rotor design according to fluid mechanics and simulation the gap between the rotor and vessel is 7-12mm to guarantee High efficiency and narrow particle size distribution With a large surface screen separation system to prevent blocking problem Cooling system design according to principles of helical stereo thermal and fluid mechanics to guarantee effective temperature control Advanced mechanical seal technology to prevent the loss of leakage Pressure and temperature automatic safety protection device Optional products contact material to meet different grinding requirements Touch screen or PLC control panel. easily for operation Technical data Initial particle size: <10Oum After ground:0.1-10um Solvent: water-baseoil-base Viscosity:40000CPS Grinding media size: 0.1-2.0mm Rotor material: Zirconia, Silcon carbide, Tungsten Carbide, PU, Aloyed steel Inner vessel material: Zirconia, Silicon carbide, Tungsten Carbide, PU,Aloyed steel. Specification

Model	Active volume	Main power	Batch size	Media size	Weight	Dimension L*W*H
	L	KW	L	mm	Kg	mm
KNB-S-3L	3	11	5-100	0.1-2.0	400	1000*900*1550

Application Lithium cathode and anode materials, industrial ceramics (alumina, zirconia, and other oxides, silicon carbide, boron carbide, zirconium silicate, and silicon nitride. Nitrogen compounds, nano polishing fluid (alumina, zirconia, cerium oxide, etc.) graphite, graphene, advanced materials, electronic ceramics, nano paste, inkjet ink, ink (Ceramics, UV, Glass, etc.). Pharmaceutical, Pesticide, Magnetic materials.
