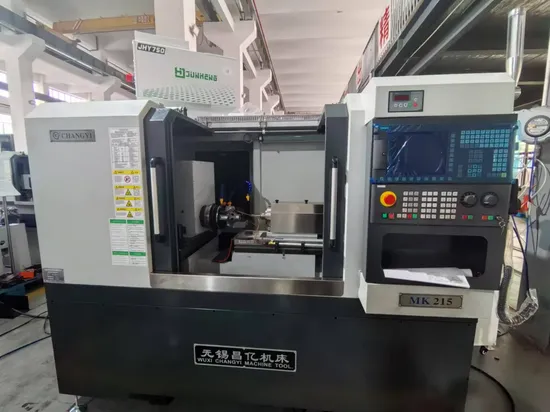

Mk215s CNC Internal Grinding Inner Hole 5-50mm

Product Description

Product Description
Main purposes of the machine tool:
MK215 is a two-axis (X-axis, Z-axis) CNC internal grinder, primarily used for grinding step holes, internal taper holes, and both internal and external end faces of workpieces. It features automatic feed, retract, rough grinding, and fine grinding; automatic wheel correction, automatic compensation, and other functions.
Processing object:
The main processing objects of this machine tool are: This machine tool can grind inner holes, step surfaces, inner end faces, and outer end faces, and is suitable for inner hole processing of parts with diameters ranging from 5-50mm and inner holes up to 80mm.
Product Parameters
Key Technical Parameters for MK215 CNC Grinding Machine:

Serial number	Name	Specification
1	Grinding hole diameter range	5-50mm
2	Maximum grinding depth	80mm
3	Maximum diameter of the workpiece inside the cover	180mm
4	Maximum diameter of the workpiece outside the cover	220mm
7	Inner hole roundness	2μm
8	Inner hole cylindricity	2μm
9	Inner hole surface roundness	Ra0.4

Detailed Photos
