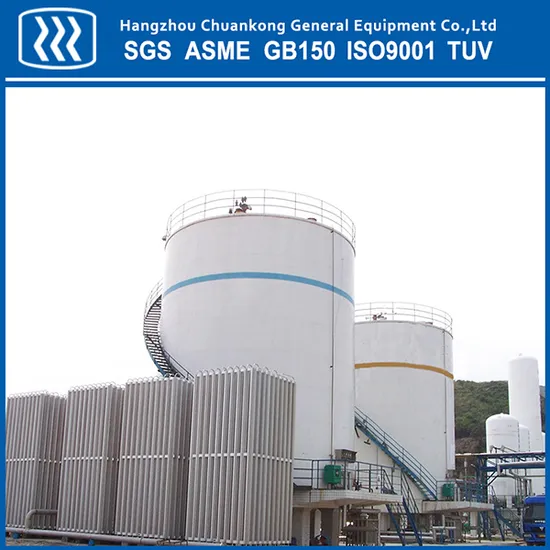

Large Medical Oxygen Tank Cryogenic Storage Tank

Product Description

Large medical oxygen tank cryogenic storage tank

Introduction
1.These tankers are vertical, cylindrical and double walled containers with powder insulation.
2.Their parts and components are transported trouser, combined and assembled into the complete tanks on site.
3.These tanks are used to store liquid oxygen, nitrogen and argon.
Product Photos

Main Technical Parameters

Description	Capacity (m3)	Max Working Pressure(kpa)	Empty Tank Weight(kgs)	Dimensions (Diam*H mm)
Cryogenic Liquid Tank	200	15	99500	9012*12500
LO2 Tank	300	9.8	89300	9880*9710
Cryogenic Liquid Tank	300	10	104500	9912*10300
		15	112000	10512*11600
		40	97000	9412*11600
	350	35	103500	9520*12720
		15	102700	9912*11610
LO2 Tank	400	9.8	110240	9980*12000
Cryogenic Liquid Tank	400	9.8	113400	9812*12900
		10	113400	9812*12900
		15	129000	10512*13146
	500	34	160500	12012*12300
		10	129000	11212*11600
LO2 Tank	1000	9.8	192000	14026*17500
Cryogenic Liquid Tank	1000	14	21400	12216*17500
		10	22000	12216*17500
		15	23300	15012*13600
	1300	10	260000	14216*17000
LO2 Tank	2000	10	352700	16516*20280
		34.5	385700	17060*18360

FAQ
1. Q: We would like to buy a storage tank.
Re: Before making quotation to you, please kindly specify the following information:
1) Capacity:
2) Medium (LO2,LN2,LAR or LCO2?):
3) Working pressure:
4) Vertical or horizontal: 2. Q: What is your production standard? Can you manufacture your products under ASME standard?Re: Our products are designed, manufactured and tested as per reference standards of GB150, Safety technology supervision regulations of pressure vessels and some other reference Chinese standards.
Our company has obtained the A2 and C2, C3 Pressure Vessel Fabrication Certifcates ,Grade GC1 Pressure Pipe& Vessel Construction Certifcates, ISO9001 Quality Certificate, ASME Certificate and U Stamp. So, if you ask for ASME stamp, we are able to manufacture your products under ASME standard.
3. Q: What's the warranty for the storage tanks?
Re: Our warranty is one year after shipment. Within one year, we will send broken spare parts at our cost upon request if it is proved to be our production defect. In fact, we rarely receive any spare parts request. If the tanks are maintained properly, they can be used for 15-20 years.
4. Q: Have you supplied tanks to any renowned companies?
Re: Our group company is a regular strategic partner of some big gas companies, such as Messer, Boc, Air Product and Air Liquide, etc in China. We have supplied many storage tanks for them with different sizes. The biggest size we ever provided is 3000m3 ordinary pressure storage tank. We also made high pressure storage vessels for them, such as 100m3 LCO2 tanks, 10m3 (20m3, 30m3)LO2 (LN2, LAR) tanks. Meanwhile, we are one of the long-term storage tank suppliers for Pepsi and Coca-Cola in China.
Just for your information, our company is also a top two manufacturer producing air separation plants in China. The biggest air separation plant we have ever made is 60,000Nm3/h, famous for its advanced technology and reliable performance. Our air separation plant is also supplied to Messer Vietnam. Please be noted that our company is a giant cryogenic equipments company with more than 40 years history.
