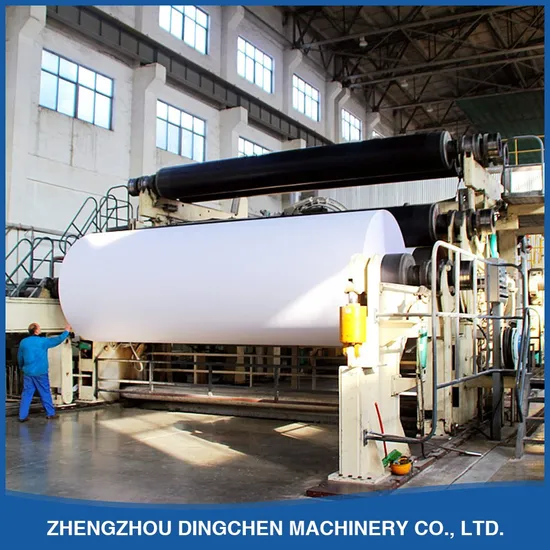

3200mm Long Wire Office Use Writing Paper Making Machine

Product Description

3200mm long Wire Writing Paper making machine for office use paper
Technical parameter

1. Raw material	waste paper, white off-cuts from printing factory
2. Output paper	cultural paper
3. Output paper weight	40-100gm2
4. Capacity	60TD
6. Net paper width	3200mm
7. Working speed	140-270 mmin
8. Designing speed	300m/min
9. Rail gauge	4300mm
10. Drive way	Alternating current frequency converter speed control, sectional drive.

Main structure for paper making
Fourdrinier part: Ø 16 meter, with air cushion type flow box; 2 pcs of Φ 600× 3700mm× 4300mm couch rolls; One pcs of Φ 800× 3700mm× 4300mm vacuum couch roll; Forming table is covered with stainless-steel; Panel of the suction box is inset with ceram.
Press part: Adopting two press parts with four rolls; One pc of Φ 800× 3700mm× 4300mm natural marble top roll; One pc of Φ 700× 3700mm× 4300mm rubber flat roll, pneumatic loaded device; One pc of Φ 750× 3700mm× 4300mm bottom vacuum press roll; One pc of Φ 700× 3700mm× 4300mm rubber bottom roll, rubber hardness 95± 2, pneumatic pressure device.
Second press part: One pc of Φ 800× 3700mm× 4300mm natural marble top roll; One pc of Φ 750× 3700mm× 4300mm bottom roll; Rubber hardness 95± 2, pneumatic pressure device.
Dryer part: 22 pcs of Φ 1500× 3700mm× 4300mm alloy dryer can, arranged by 6+ 88; The first and the second dryer are chrome plated; Equipped with 22 sets of blades.
Calendaring part: Adopting 2 hardware calendars; 2 pcs of Φ 600× 3700mm× 4300mm steel rolls, pneumatic pressure device.
Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.
have won customers' consistent affirmations.
We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company
Technical Advantage
1.Experienced producing team
2.Advanced technological strength
Product Advantage
1.Through the international authentication
2.The same material the most preferential price
3.A lot of varieties for the customer to choose
Service Advantage
1.Technical consultation
2.Project evaluation
3.Detailed design of factory
4.Installing and testing the whole production line
5.Training engineers and workers
6.Supplying spare parts for long time
The business process
1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation Packaging & Shipping Our Services FAQ
