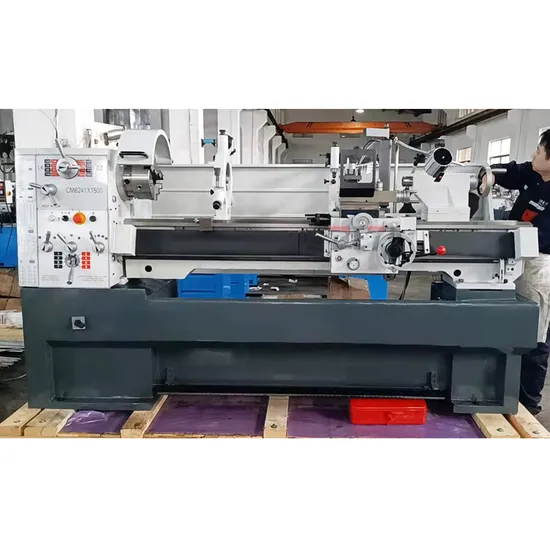

Turning Machine Cm6241 Gap Bed Universal Metal Lathe for Sale
Basic Info.
Model NO.
CM6241/1500
Type
Horizontal Lathe
Processing Accessory
Manual Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Toolpost
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Turning Machine Cm6241 Gap Bed Universal Lathe
Max.Swing Over Bed
410mm
Distance Between Centers
1500mm
Tool Post Type
4-Way Toolpost
Spindle Motor
2.2/3.3kw
Chuck
Manual Chuck
Voltage
380V
MOQ
1 Set
Delivery Time
2 Months
Spindle Bore
52mm
Width of Bed
250mm
Spindle Nose
D1-6
Spindl Speed
45-1800rpm
Key Word
Universal Lathe
Control
Manual Lathe
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 100.00cm * 200.00cm
Package Gross Weight
1500.000kg
Product Description
Turning Machine CM6241 Gap Bed Universal Metal Lathe for saleFeatures:
1.Grinded and hardened guide way.
2.High precision bearings and grinded gears ensure high accuracy.
3.Low noise.
4.Monoblock cast iron base ensure good rigidity.
Max. swing over bed 410mmSpindle bore 52mmDistance between centers 1000/1500mm for choiceVariable speed is optional
| Model | CM6241x1000 | CM6241×1500 |
| Max. swing over bed | Φ410mm | |
| Max. swing over cross slide | Φ255mm | |
| Max. swing over gap | Φ580mm | |
| Center height | 205mm | |
| Distance between centers | 1000mm/1500mm | |
| Width of bed | 250mm | |
| Max.section of tool | 20mm×20mm | |
| Max.travel of cross slide | 210mm | |
| Max.travel of compound rese | 140mm | |
| Spindle bore | Φ52mm | |
| Spindle nose | D1-6 | |
| Taper of spindle speed | M.T.#6 | |
| Range of spindle speed | 16changes 45-1800r/min | |
| Leadscrew pitch | 4 T.P.I. | |
| Range of metric longitudinal feeds range | 0.05-1.7mm/rev(17 Nos) | |
| Range of metric cross feeds | 0.025-0.85mm/rev (17 Nos) | |
| Range of metric threads | 0.2-14mm(NO. 39) | |
| Range of inch threads | 2-72 T.P.I.(NO. 45) | |
| Range of Diametrical pitch | 8-44D.P.(21Nos) | |
| Range of module pitches | 0.3-3.5 M.P.(18Nos) | |
| Dia. of tailstock sleeve | 50mm | |
| Travel of tailstock sleeve | 120mm | |
| Morse taper of tailstock sleeve | M.T.#4 | |
| Power of main motor | 2.2/3.3kw | |
| Power of coolant pump | 120W / 3PH | |
| Overall diamension(L*W*H) | (1000mm):1940×850×1320mm | |
| (1500mm): 2440x850x1320mm | ||
| Packing size(L*W*H) | (1000mm):2070×926×1635mm | |
| (1500mm):2575x926x1635mm | ||
| N.W/G.W | (1000mm): 1350/1550kg | |
| (1500mm): 1550/1800kg | ||
