High Quality Durable PVC Pipe Fittings-Pn10 Standard Plastic Pipe Fitting Tee Ts Flange for Water Supply
| US$0.40-69.00 | 100 Sets (MOQ) |
Basic Info.
Material
PVC
Structure
Flanges
Connection
Flanged
Sealing Surface
FF
Manufacturing Way
Injected
Color Default
Black,Grey,Blue
Standard Code
ISO1452,DIN8063
Pressure
Pn10
Usage
Water Supply
Transport Package
Cartons
Specification
50-500mm
Trademark
xita
Origin
Changzhou
HS Code
3917400000
Production Capacity
5500mts Per Year
Packaging & Delivery
Package Size
48.50cm * 43.50cm * 44.50cm
Package Gross Weight
20.000kg
Product Description

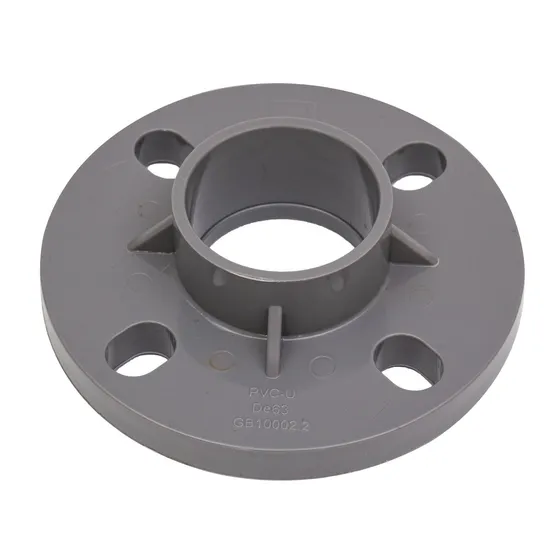

Product DescriptionPVC pipe Van Stone Flange
PVC flange 2 piece, loose flange
| Material: | U-PVC |
| Size | 20mm~250mm |
| Color | Grey and white |
| Pressure | PN10=1.0mpa=150PSI |
| Standard | PN10=1.0mpa=150PSI |
| Temperature resistance water temperature | -10º To 50° |
| Application | Water supply, water draining, farming, irrigation, Aquiculture, and water treatement and other fields |
Product Parameters
| TS Flange PN10 | |||||||||
| Size (mm) | Dimension(mm) | ||||||||
| d | d1 | d2 | H | D | T | L | D1 | Holes | |
| 20 | 28.30 | 20.30 | 19.99 | 20.00 | 95.00 | 14.00 | 24.00 | 65.00 | 4 |
| 25 | 33.30 | 25.30 | 24.99 | 20.00 | 105.00 | 14.00 | 24.00 | 75.00 | 4 |
| 32 | 40.35 | 32.35 | 31.99 | 23.00 | 115.00 | 14.00 | 27.00 | 85.00 | 4 |
| 40 | 48.40 | 40.40 | 39.98 | 27.00 | 140.00 | 16.00 | 33.00 | 100.00 | 4 |
| 50 | 58.00 | 50.40 | 49.98 | 32.00 | 150.00 | 17.00 | 40.00 | 110.00 | 4 |
| 63 | 71.50 | 63.45 | 62.99 | 38.50 | 165.00 | 18.00 | 46.50 | 125.00 | 4 |
| 75 | 84.50 | 75.50 | 75.00 | 44.50 | 185.00 | 19.00 | 57.50 | 145.00 | 4 |
| 90 | 100.50 | 90.55 | 90.00 | 52.00 | 200.00 | 20.00 | 65.00 | 160.00 | 8 |
| 110 | 122.50 | 110.60 | 110.00 | 62.00 | 220.00 | 22.00 | 76.00 | 180.00 | 8 |
| 125 | 137.00 | 125.60 | 124.90 | 69.00 | 250.00 | 23.00 | 82.00 | 210.00 | 8 |
| 140 | 153.00 | 140.65 | 140.00 | 77.00 | 250.00 | 24.00 | 90.00 | 210.00 | 8 |
| 160 | 175.50 | 160.70 | 160.00 | 87.00 | 285.00 | 28.00 | 102.00 | 240.00 | 8 |
| 200 | 219.00 | 200.80 | 200.00 | 107.00 | 340.00 | 32.00 | 123.00 | 295.00 | 8 |
| 250 | 273.00 | 251.00 | 249.85 | 132.00 | 395.00 | 35.00 | 150.00 | 350.00 | 12 |
Product Advantage
1. High quality with reasonable price2. Oven test no sign of bubble or cracks3. Simple installation and Good electrical insulation4. Water quality unaffected and Small resistance to fluidity5. Rustless, oxidation-resistant, anti-corrosion and environment-friendly
