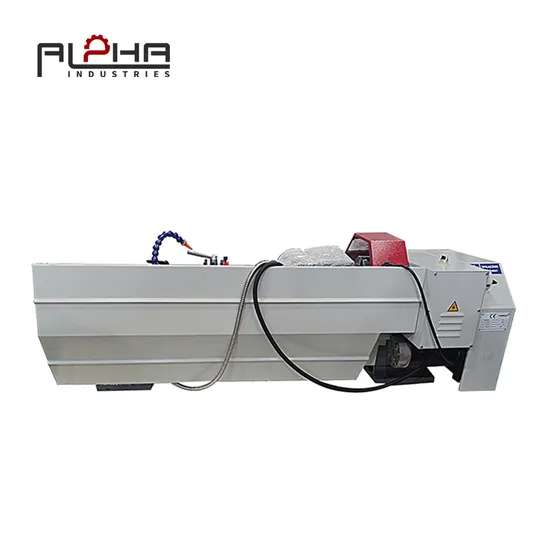

Heavy Machinery Tu3008/Tu3008 Vario/Tu3109 Vario Metal Universal Horizontal Lathe

Product Description

Product Description
High Precision Lathe Machine TU2907 / TU3008 VARIO Lathe Product Parameters

Technical Parameters
Model No.	Unit	TU2907	TU2907 Vario	TU3008	TU3008 Vario	TU3109 Vario
swing over bed	mm	0290	0290	0300	0300	0310
swing over cross slide	mm	0165	0165	0180	0180	0180
admits between	mm	700	700	800	800	900
center height	mm	145	145	150	150	150
width of bed	mm	180	180	182	182	182
spindle bore	mm	026	026	O38	O38	O38
spindletaper		MT4	MT4	MT5	MT5	MT5
3-jaw chuck	mm	0125	0125	0160	0160	0160
range of spindle speed	rpm	150-2000	150-2250	150-2000	30-3000	30-3000
compound rest trave	mm	60	60	65	65	65
cross slide travel	mm	160	160	180	180	180
max.section of tool	mm	18×18	18×18	18×18	18×18	18×18
threads metric pitches	mm	0.2-3.5	0.2-3.5	0.2-3.5	0.2-3.5	0.2-3.5
threads imperial pitches		8-56TPI	8-56TPI	8-56TPI	8-56TPI	8-56TPI
qull diameter	mm	038	038	O38	O38	O38
quill travel	mm	70	70	70	70	70
quill taper		MT3	MT3	MT3	MT3	MT3
main motorpower	kW	1.1	1.5	1.5	2.2	2.2
overall dimension(L×W×H)	mm	1320×605×405	1320×605×405	1420×705×575	1420×705×575	1420×705×575
packing size(LxW×H)	mm	1370×660x440	1370×660×440	1500×720×690	1500×720×690	1500×720×690
N.W./G.W.	kg	260/290	260/290	260/290	260/290	260/290

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
