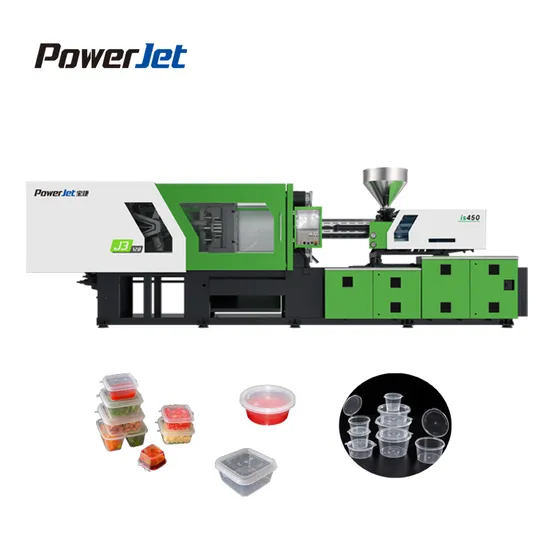

Advanced Injection Molding Machine for Plastic Sauce Boxes

Product Description

KP series advantages Designed for high straightness products such as thin-walled and slender pen holders. The product has stable size, high aesthetics and high yield. The shaping cycle is fast, and the production capacity is increased by more than 20% compared with the industry brand. Applicable product and process requirements Plasticizing and color mixing are good. The concentricity of the slender pen holder has high requirements on the rigidity and stability of the clamping structure. The individualized cooperation of professional mould makes the production more convenient and efficient.
INJECTION UNIT
Special screw & barrel design, equipped with ifrared heating and mixing head, plating more powerfu, btter color mixing. Improved injection system, increase plasticizing capacity, Injection faster and more precise.
CONTROL UNIT
Plasticizing system makes the products more beautiful, and the production cycle is 3-4 seconds shorter than the other brand machine
CLAMPING UNIT
Center-pressing toggle structure design, high clamping force, high rigidity, low deformation, production fast and stable.
T-slot platen, convenient and fast mould change.
MACHINE ARCHITECTURE
Strengthen frame, more sturdy, reduce vibration, stable operation.
Production Instance
Machine Model: K168P-S7 Production: Whiteboard pen
Material: PP
Weight: 187.6g
Cavity: 32
Cycle time: 14.6s
Machine Model: K228P-S7 Production: Marker pen
Material: PP
Weight: 403.2g
Cavity: 64
Cycle time: 15s
Product Paramenters

Project Cases
Company Profile
POWERJET PLASTIC MACHINERY CO., LTD. is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and blow molding machine. Powerjet was founded in 2000,occupying an area of 130,000 square meters. Annual production capacity has reach to 4000-5000 injection sets of. More than 20 offices have been set up in the global market, machines have been exported to more than 60 countries in the world. The machine specifications are complete, adapt to a variety of industries, cost-effective, and create high returns for customers. One-stop whole-process caring service.
Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan, etc. With a global sales network, our local offices and agents can provide more convenient and sincere services. Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
Customer Photos
Specification

MODEL	KP128-S7
ITEM	UNIT	1280-420
Screw Diameter	mm	45
Screw L/D Ratio	L/D	18.2
Injection Volume	cm3	270
Shot Weight	g	246
Injection Rate	g/s	162
Injection Pressure	Mpa	156
Clamping Force	KN	1280
Opening Stroke	mm	360
Space Between Tie-Bars	mm	410*410
Mould Thickness(Min-Max)	mm	145-450
Ejector Force	KN	42
Ejector Stroke	mm	120
Pump Pressure	MPa	17.5
Motor Power	KW	15
Heater	KW	7.5
Machine Dimension	m	4.36*1.44*1.61
Machine Weight	T	3.8

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 24 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Is it possible to send engineer to install and commission machine, even train our workers?
A2: Yes, we can send our engineer to your factory for installation, commissioning, training. We have some engineers flying among different countries for after sales service and technical support.Therefore, we need you to prepare invitation letter for visa before shipment. However, please be noted that all cost for visa, travel, hotel should be paid in advance by customers.
Q3: If we buy your machines, is there any warranty?
A3: Yes, definitely. 12-months warranty after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 12-months. We will supply those parts for free but the possible transportation cost should be paid by clients.
