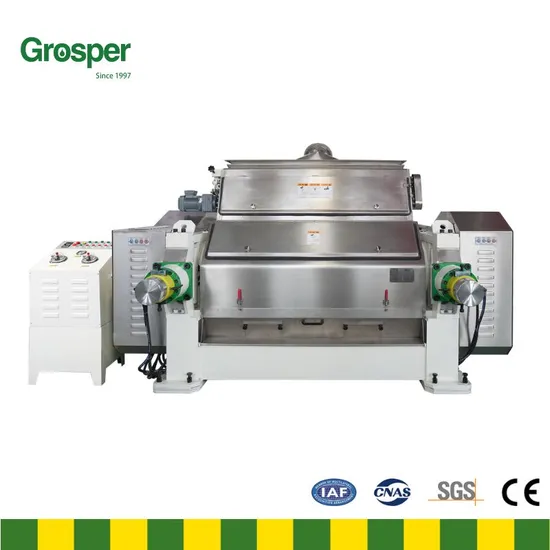

Grosper Steam Corn Flaker FC7175SF 240tpd 110kw Corn Flaker Steam Corn Flakes Production Line

Product Description

FC7150SF
1: FC series corn flaking machine is one of the main equipment for producing steam corn flakes. The layout of this series of corn flakers is reasonable and compact, reducing the space.
2: The whole machine adopts fully enclosed, stainless steel structure.
3: We use China's first heavy roll blank which are poured by a centrifuge imported from Germany, processed by Grosper independently, and has passed a strict dynamic balance test. The chill of the roller is made by Ni Cr Mo alloy, and the chill depth is 35+/-5mm.
4: The hydraulic system adopts intermittent hydraulic pump station with PLC, which is highly efficient and energy-saving.
5: The thickness of the flakes can be adjusted without stopping the machine. This is our invention patent.
6: The modular design structure reduces the technical difficulty of equipment maintenance and roll replacement.
7: It allows customers to complete the replacement of parts by themselves in a short time.
Product Description

Item	Unit	Parameter
Model	-	FC7175SF
Trade Mark		Grosper
Vol.-weight of raw material	≥	700
Capacity	T/H	10
Raw material		Corn
Roller size	MM	711*1750
Chill depth	MM	35+/-5
Chill hardness	HS	75+/-3
Flake thickness (adjustable)	MM	1.2-2
Roller speed	RPM	335
Total motor power	KW	113.3(135.3)
Drive motor power	KW	110(132)
Reducer power	KW	1.1
Approach weight	TON	16.7
Overall dimension(length× width× height)	MM	3200*2500*1900

Product Paramenters
Product Show Customer cases FAQ
1: What kind terms of payment can be accepted? A: For terms of payment, by T/T
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO certificate .
3: What about the delivery time?
A: 60 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 set
