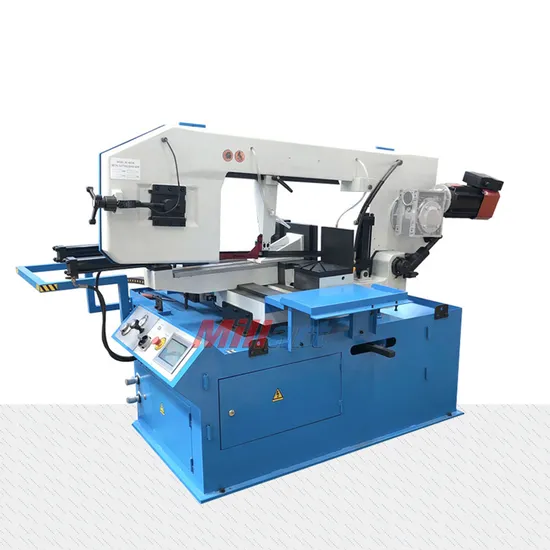

BS-460GB Middle-Sized Auto Metal Cutting Miter Band Saw Machine with PLC, Band Sawing Machine

Product Description

Product Description
Technical parameter :
Feature :
1. High-capacity band control by two-speed motor
2. Vertical rotation on bolt with adjustable tapered bearings without backlash
3. Band stretching is obtained by electro-mechanical blade tensioner with microswitch
4. The saw bow can rotate around.
5. Double speed selection.
6. It is characterized by manual/automatic operation mode.
7. Has power break device (the machine will automatically power off when the rear protective cover is opened).
8. The falling speed of saw bow is controlled by hydraulic cylinder.
9. It is equipped with a block feeder (with fixed saw length).
10. Has sizing device (the machine will automatically stop after sawing the materials).
11. The hydraulic system automatically controls the up and down of saw bow and the tightness and looseness of the jaw.
12. The cooling system can prolong the service life of saw blade and improve the precision of the workpiece.
13. Has PLC system.
14. Automatic feeding and clamping
15. Metric and inch two kinds of feeding length can be selected
16. 3m length feeding and back platform
17. With manual defend net, can protect operator's safety effectively
18. Effective width of feeder stand:460mm
19. Height of feeder stand:850mm
20.Max.feeding (single): 500mm
Technical parameter

Model		BS-460GB
Capacity	Circular @90°	330mm(13")
	Rectangular @90°	460x250mm(18"x9.8")
	Circular @60°(Right)	205mm(8")
	Rectangular @60°(Right)	205x250mm(8"x9.8")
	Circular @45°(Left & Right)	305mm(12")
	Rectangular @45°(Left & Right)	305x250mm(12'x9.8")
Blade speed	@50Hz	40/80MPM
	@60Hz	48/96MPM
Blade size		27X0.9X3960mm
Motor		1.5/2.2kw
Drive		Gear
Packing size		250x230x163cm
N.W/G.W.		1250/1430kg
