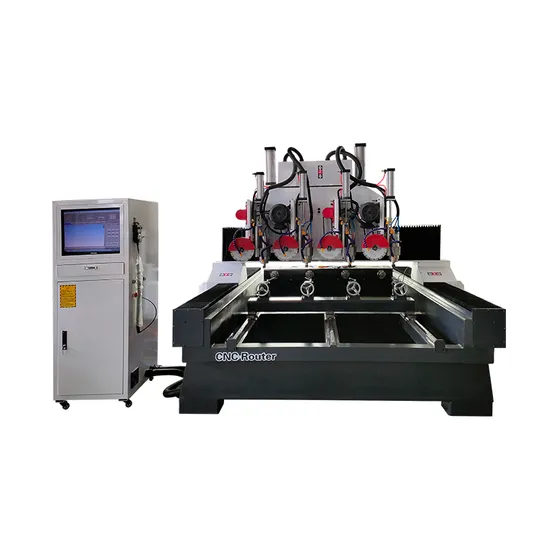

4 Head CNC Router Stone Machinery for Stone Column, Railing, Balustrade, Statue
| US$8,000.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JCS1325R-4H
Automation
Automatic
Control
CNC
Motor Power
High Power
Engraving Head Speed Adjustability
Wide Adjustable Range
Certification
CE, ISO, BV, TUV
Current
AC
Application
Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
Customized
Customized
Usage
Stone Column, Railing, Balustrade, Statue
Applicable Material
Wood, Stone, Plastic, Soft Metal Engraving
Rotary Working Area
200mm Diameter*1300mm Length *4
Spindle Number
4 Pieces
Spindle Power
3kw Water Cooling
Spindle Rotation Speed
24000rpm
Collet
Er20
Travel Motors
Japan Servo Motors
Invertor
Taiwan Delta
Controlling System
4 Axis Nc Studios
Compatible Software
All Cam Software, Powermill, Ug etc
Overall Size (L*W*H)
2.91m, 2.26m, 2.21m
Water Proof Dust Cover
Yes
Oil System
Yes
Machine Weight
2500kg
Transport Package
Outside: Standerd Plywood Case Package
Specification
working size: 200mm(D)*1300mm(L)*4pc
Trademark
CHAODA
Origin
China
HS Code
8464909000
Production Capacity
1200sets/Year
Product Description
4 Head 3D CNC Stone Engraving Machine with Quick Saw Roughing and 4th Axis Rotary| Description | Parameters |
| Model | JCS1325R-4H |
| working area | 200mm diameter, 1300mm length |
| Guide Rail | Taiwan HIWIN square linear guide rail on X,Y, Z axis |
| Rack and Pinion | Taiwan Rack and pinion transmission on X, Y axis |
| Ball Screw | Taiwan Ball Screw on Z axis |
| Spindle power | 3 kw water-cooling spindle |
| Spindle rotating speed | 0-24000rpm/min |
| Motor | Servo Motor |
| Work voltage | AC380V/50Hz |
| Command language | G code or HPGL |
| Operating system | DSP control system |
| Weight | 2500kg |
Application:
1).Stone Material: Artificial stone, Marble, Granite, Ceramic Tile,milestone, Terrazzo, Limestone, Sandstone,
Travertine, Quartzite, Slate, grindstone,Jade etc.
2).Wood Material:Solid Wood,Particle board,MDF,Wood Panel,Glass, Furniture(Door lock holes and edges), wave board screen,Calligraphy tablet etc.
3).Acrylics material:Acrylics,Light guide plate and diffuser plate
4).Thermoplastic Elastomers:Rubber, Plastic, Resin and Foam Products
5).Engineering Plastics Material:PVC,ABS,PE,PF,PU
6).Compound material:FRP, Artificial Stone, Compact Grade Ceramic Chip and Laminates,Carbon Fiber Panel
7).Light Metal Materiall:Aluminum, Copper
