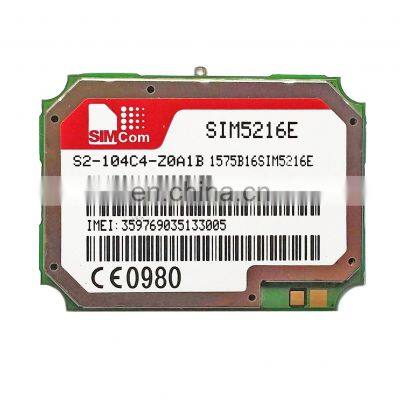

Sim5216E Multi-Band HSDPA/WCDMA/GSM/GPRS/EDGE 3G module

Product Description

Product Description
DescriptionSim5216E Multi-Band HSDPA/WCDMA/GSM/GPRS/EDGE 3G moduleGeneral features • SIM5216A:Dual-Band UMTS/HSDPA 850/1900MHz Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz• SIM5216E:Dual-Band UMTS/HSDPA 900/2100MHz Tri-Band GSM/GPRS/EDGE 850/900/1800MHz• SIM5216J: Dual-Band UMTS/HSDPA 850(800)/2100MHz Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz • GPRS multi-slot class 12• EDGE multi-slot Class 12• WCDMA 3GPP release 5Output power- UMTS 1900/850: 0.25W - UMTS 2100/900: 0.25W - GSM850/GSM900: 2W- DCS1800: 1W- PCS1900: 1W • Control Via AT Commands• Supply voltage range: 3.3V~ 4.2V• Operation temperature: -30 °C to +80 °C• Dimension: 36mm × 26mm × 4.7mm • Weight: 7gSupport embedded Script Language• LUA Script LanguageSpecifications for CSD• Support in GSM and WCDMAOther features• USB Driver for Microsoft Windows 2000/XP/Vista• USB Driver for Linux 2.6.16• Firmware update via USB• MMS• TCP/IP• FTP/HTTP/HTTPS/SMTP/POP3• FOTA• USB AudioSpecifications for SMS• Point to point MO and MT• Text and PDU modeInterfacesUSB2.0/ UART/ USIM card/ ADC/ Digital Camera/ GPIO/ I2CSpecifications for Data transfer• HSDPA - Max.3.6Mbps(DL)• WCDMA - Max.384Kbps(DL), Max.384Kbps(UL)• EDGE Class - Max. 236.8Kbps(DL),Max.118Kbps(UL)• GPRS - Max. 85.6Kbps(DL), Max.42.8Kbps(UL)• CSD - GSM data rate 14.4Kbps - WCDMA data rate 57.6KbpsSpecifications for Network Identity and Time zone (NITZ)• Support in GSM and WCDMACertificationsSIM5216A• FCC/PTCRB/IC/ROHSSIM5216E• GCF/CE/ROHSSpecifications for video call• DTMF on H245• Support standard WCDMA 64kbps(CS) Video callWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
