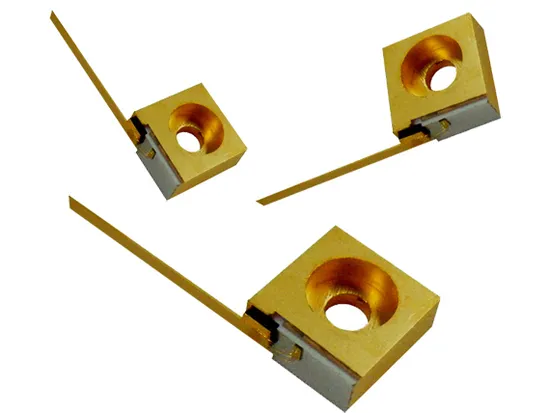

New Original 808nm Infrared Laser Diode 5W IR for Night Vision

Product Description

Product Description Features:1. High quality infrared laser diode 808nm 5000mw2. laser diode 3. C-mount package type
Product Parameters
Absolute Maximum Ratings (Tc = 25ºC)

Item Symbol Ratings Unit Optical output power Po 5000 mW LD Reverse Voltage VR(LD) 2 V Operating Temperature Topr 10 ~ +30 °C Storage Temperature Tstg 10 ~ +80 °C

Optical and Electrical Characteristics (Tc=25°C)

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Optical Output Power	Po	CW	-	5000	-	mW
Peak Wavelength	λp	Po=5000mW	805	808	810	nm
Threshold current	Ith	CW	-	-	1000	mA
Operating current	Iop	Po=5000mW	-	-	6000	mA
Operating voltage	Vop	Po=5000mW	1.8	-	2.4	V
Slope Efficiency	CW	η	-	1.0	1.2	mW/mA

Outline Dimensions & Terminal Conections
1. Can Type: C-mount Floating Mounted with Protection device.
2. Salable high quality 808nm 5w laser diode.
3. Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes. Normally 100pcs in one tray, 10 trays in one bag, then 10 bags in one carton box.
Packaging & Shipping1. Plastic box, ESD bag, standard and normal package.
2.1-3 days after receiving the payment by T/T, Western Union, PAYPAL, Secure Payment, Trade Assurance.
3.It will be shipped by DHL/FedEx/UPS/TNT or other special way, please contact with us to choose the best one. 4. Delivery time will be usually 3~5 working days.
Company ProfileDongguan Blueuniverse Laser Co.,Ltd. was founded in 2010,the company is located in Dongkeng Town,Dongguan City,Guangdong Province,which is a collection of research,produce,sales photoelectric enterprise.We specialize in semiconductor laser diodes,laser modules,laser light source as the center and we are still continuously researching and developing other laser related areas.
Our company insist to developing the road that"guide by high and new technology,support by High-level talent and rely on High-tech products".We Commit to the development of high quality products and improve the competitiveness.We will achieve good and fast development of enterprises, and strive for the laser industry to make greater contributions to the development!
About the warrantyAll products have been tested and packed well before shipment. Please test the product before assembling. If there is any problem, please inform us within 3 days after receiving the product. If the situation is confirmed, we can arrange a replacement or refund for you.
After Sales ServiceOur services We provide professional ODM and OEM services for laser modules. We are a manufacturer of laser modules and a provider of laser light source solutions from design to production.The power of our laser diode ranges from 5mw to 5W, and the wavelength is as follows: 405nm 410nm 445nm 450nm 455nm 488nm 505nm 510nm 515nm 520nm 532nm 635nm 638nm 642nm 650nm 658nm 780nm 785nm 808nm 820nm 830nm 850nm 905nm 940nm 980nm RGB and so on.
A.Every customer's admiration is our goal and future willing, we are concentrated in doing the best quality products,supplying the best goods and service.B.Main products: Semiconductor laser diode, laser module, laser power bank, bicycle lasertail light, bicycle wheel light, headlight, auto laser
fog light.
FAQ1.Q:How to contact us ? A:You can send messages to us on trademessenger directly, or send us a email. 2.Q: Can I order samples first to test the quality? A: Yes, Samples are in stock for you.3. Q: How does your factory do regarding quality control? A: Quality is priority. We can always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained production licence, ROHS, CE and ISO9001: 2015.
