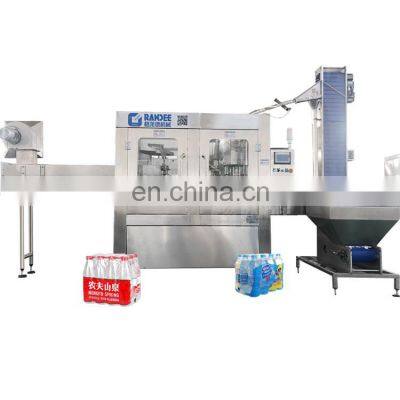

Automatic 3 in 1 plastic bottle water washing filling capping machine 1000-2000 water bottling plant

Product Description

Product Description
Automatic 3 in 1 plastic bottle water washing filling capping machine 1000-2000 water bottling plant Product DescriptionMachine description:1.The automatic water filling machine use direct connection technology between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing. 2.Neck-hanging technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only arch board and starwheel such little nylon parts need to be changed. 3.Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution in this automatic water filling machine. 4.Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss. 5.Splint of starwheel using twist descending way to simplify the process of bottle-size-changing. The automatic water filling machine applies to the production of purified water and mineral water. Main technical parameter:ModelCGF8-8-3CGF14-12-5CGF16-16-6CGF18-18-6CGF24-24-8CGF32-32-10CGF40-40-12Capacity(500ml/BPH)200030004000600080001200016000Suitable bottle shape and sizeBoth round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mmCompressed air pressure0.3-0.7MPaBottle washing mediumSterile waterWashing pressure0.25MPaMain motor1.52.22.22.235.57.5Dimension(mm)2000*1600*23002200*1800*23002400*1900*23002500*2000*23002700*2100*23002970*2260*27003780*2800*2700Weight(KG)2000250030003500450065008500 Machine show:DetailsWashing Part:The bottle enters into the rinsing part of three-in-one machine through air conveyor. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againFilling part:Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.Air conveyor: Air conveyor is fixed on the floor, with fan installed on the top. Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power. All are made of stainless steel SUS304/316 Rack made by high quality carbon steel welded. Conveyor system Energy saving. High efficient. Adapt to customer factory layout Special lubrication system, keep products clean, health, safety Electric eyes design keep whole line running safety and quickly Related productRO System This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. Blowing Machine with different options 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities.2.Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. Automatic PVC sleeve labeling machine Capacity: 100-350bottles/min can be chosenLabel material: PVC PET OPS, etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max) Automatic pet film shrink packing machine Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ coolingSpeed: 8-12packages/minPower (rated/real): 26kw / 16kwMax. packing size: 420*300*350mm(LxWxH)Max. sealing size: 650mm Company InformationOur teamOur exhibitionFAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare parts?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
