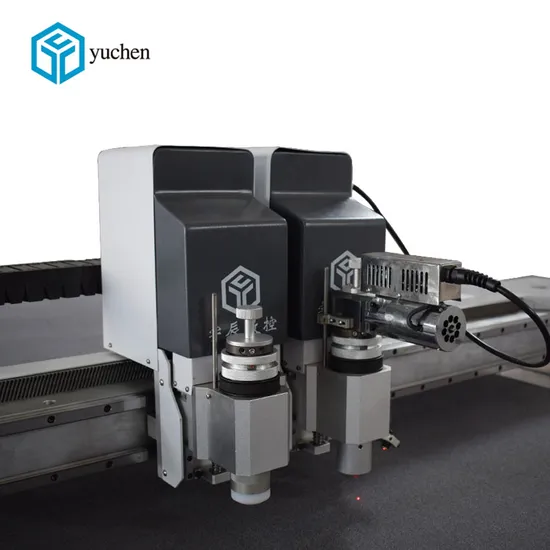

CNC Cylinder Head Gasket Cutting Machine Made in China
| US$13,000.00-21,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YC-1625A
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Transport Package
Wooden Cases.
Specification
2500*1600mm
Trademark
YUCHEN
Origin
Shandong Jinan
Production Capacity
25 Sets/Month
Product Description
CNC cylinder head gasket cutting machine made in China Model: YC-1625A Machine size can be customizedBrand: Yuchen
Applicable cutting materials:Mats, PVC, leather, foam composite material, XPE, etc
Application: widely used in Household furnishing industry,cloth sofa cover,tablecloth,etc
Functions: cutting(oscillating cutting tool).
Optional cutting tool: oscillating cutting tool,wheel knife tool.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.
Parameter:
| Model | YC-1625L | YC-1630L | YC-1625LA |
| Working area | 2500×1600mm | 3000×1600mm | 2500×1600mm |
| Operation properties | continuous cutting with high efficiency, 7*24 with zero downtime | ||
| Safety device | Infrared sensor; sensitive response; safe and reliable | ||
| Maxi cutting speed | 1200mm/s | ||
| Translational velocity | 1500mm/s | ||
| Applicable materials | Mats, PVC, leather, foam composite material, XPE, etc | ||
| Multifunctional head | Oscillating cutting tool | ||
| Cutting thickness | 0.1-20mm (subject to material) 0.1-10.0mm (subject to the material cutting) | ||
| Cutting tolerance | ±0.1mm | ||
| Transmission interface | Ethernet | ||
| Driven system | Motor: Fuji Linear rail: Hiwin | ||
| Fixed mode | Vacuum absorb | ||
