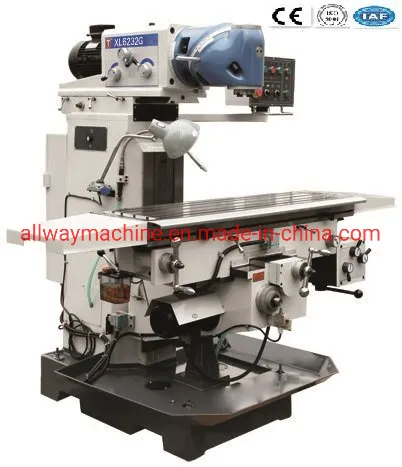

Knee Type Universal Milling Machine
Basic Info.
Model NO.
XL6232, XL6226, XL6236
Type
Knee-and-Column Milling Machine
Object
Tool
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Manual
Automatic Grade
Automatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Swivel Head
360 Degress
Table Size
1250X360,1500X360,1700X400,2000X400mm
Transport Package
Pallet
Specification
XL6236
Trademark
Allway
Origin
China
HS Code
84595900
Product Description
Knee type universal Milling Machine, with 360 degree swivel milling head, autong feeding axies, Digital readout systems, etc.| Specification | Unit | Model XL6236 | |
| Spindle taper | 7:24 ISO40(V) 7:24 ISO50(H) | ||
| Distance from spindle center line to column surface | mm | 350~850 | |
| Distance from spindle nose to worktable | mm | 210~710 | |
| Distance from spindle center line to worktable | mm | 0~500 | |
| Distance from spindle center line to arm | mm | 175 | |
| Spindle speed | r/min | 11steps 35~1600 (V) 12steps 60~1800 (H) | |
| Worktable size | mm | 1250×360 (1500x360) | |
| Worktable travel | Longitudinal | mm | 1000 |
| Cross | mm | 320 | |
| Vertical | mm | 300 | |
| Worktable longitudinal/ cross power feed | mm/min | 8steps 15~370 Rapid 540 | |
| Worktable elevating power feed | mm/min | 590 | |
| Worktable "T"slot | Number | mm | 3 |
| Width | mm | 18 | |
| Distance | mm | 80 | |
| Main motor | Kw | 2.2 (V) 4 (H) | |
| Worktable power feed motor | W | 750 | |
| Worktable elevating motor | KW | 1.1 | |
| Coolant pump | W | 90 | |
| Coolant flow | L/min | 25 | |
| Overall dimension (L×W×H) | mm | 2220×1790×2040 | |
| Net weight | kg | 2400 | |
| Specification | Unit | Model XL6226 |
| Spindle taper | 7:24 ISO40 | |
| Distance from horizontal spindle to worktable | mm | 100-500 |
| Distance from horizontal spindle to supporting | mm | 0-500 |
| Spindle speed range | r/min | 35-1600 |
| Swivel angle of swivel head | 360° | |
| Table size | mm | 1120× 260 |
| Table travel(x/y/z) | mm | 580/270/400 |
| Range of longitudinal,cross travel | mm/min | 18-308(8steps) |
| Vertical up-down(z axis) speed table | mm/min | |
| T-slot NO./width/distance of rotary table | mm | 3/14/63 |
| Main motor | KW | 2.2 |
| Motor for rapid device of table | W | 250 |
| Motor of lifted table | W | |
| Motor of cooling pumps | W | 90 |
| Speed of cooling pumps | L/min | 25 |
| N.W/G.W. | kg | 1150/1300 |
| Overall dimension | mm | 1665×1500×1750 |
| Specification | Unit | Model XL6232 |
| Spindle taper | 7:24 ISO40 | |
| Distance from horizontal spindle to worktable | mm | 120-490 |
| Distance from horizontal spindle to supporting | mm | 0-500 |
| Spindle speed range | r/min | 35-1600 |
| Swivel angle of swivel head | 360° | |
| Table size | mm | 1250×320 |
| Table travel(x/y/z) | mm | 600/320/370 |
| Range of longitudinal,cross travel | mm/min | 22-555(8 steps)810(max.) |
| Vertical up-down(z axis) speed table | mm/min | 560 |
| T-slot NO./width/distance of rotary table | mm | 3/14/70 |
| Main motor | KW | 2.2 |
| Motor for rapid device of table | W | 750 |
| Motor of lifted table | W | 750 |
| Motor of cooling pumps | W | 90 |
| Speed of cooling pumps | L/min | 25 |
| N.W/G.W. | kg | 1320/1420 |
| Overall dimension | mm | 1700×1560×1730 |
