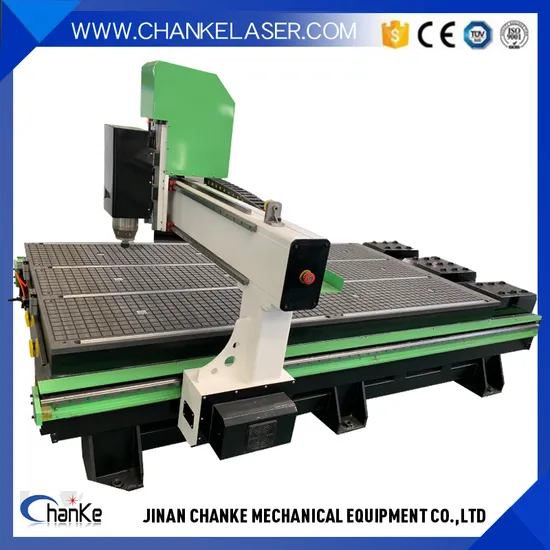

1300X2500mm Wood Plastic Acrylic CNC Machine for Advertising Industrial

Product Description

1. Introductions:
This machine working size is: 1300x2500mm with 3kw water cooling spindle power, and vaccum working table it can cut and engrave on the wood / MDF/acrylic/alumnium/ brass /copper/and other metal and nonmetal materials. Most of our customer buy this machine is make the wooden door, wooden furniture, crafts and woodworking indursty, 3D wave board processing, cupboard doors, crafts wooden doors, unpainting door, windowns.
It can cut and engave on the wood/MDF.....if with 1.5kw/2.2kw water cooling spindle, it is mainly used it to do the engraving work, but it aslo can do the cut work, for example, if cut more thick wood/ MDF (more than 30mm) it need to cut many times, then can cut down, but the edge is smooth. if with 3kw water cooling spindle it can cut 20mm thickness wood /MDF for one time, if the power is more bigger, more thick of the wood and MDF the machine can cut.
Our factory has the air cooling spindle power, if some customer don't like use the water cooling power spindle, then can choose the air cooling spindle. the working pinciple is the same of this two type wood engraving machine.
we can produce the wood cutting and engraving cnc router with many heads, like one spindle 2 heads/3/4/5/6 heads , this is as your choice. or can produce the machine with 2 or 3 /4 spindles. when you send us an letter, please tell our sales worker your exactly request, if you don't know wood cnc router exactly, please tell us you to do which work and other requirments, then our worker will help you choose one type of machine which is will fit for you.
2. Here is the spare parts of the 3kw water cooling spindle power wood cnc router:
(1). Working size:1300x2500x200mm, materials holders working table
(2).Water cooling spindle: 3 kw CS brand
(3).TaIWAN HIWIN square rail imported from TAIWAN
(4). Z axis TBI ball screw imported TAIWAN
(5). 6MM-8MM steel structure of lathe bed(with good stability)
(6).Hiwin Blocks imported from taiwan using on the Hiwin guide rail.
7)DSP NK105 Control system
8)CS spindle5.5kw total need:
9)Fuling 5kw inverter: total
10 Leadshine stepper motor
11Yako drinvers2D811 (best drivers in china) 1 sets
12France schneider contactor and leakageprotector
13Japanese Omron : 1 set
14 Knifetools:diameter:3.175mm/4mm/6mm/8mm/10mm/12mm/12.7mm
3. Technical Data:

Model	1300X2500X200mm
Working area	1300x2500x200mm
Whole machine size	1720mm*1320mm*1100mm
Spindle power	CS cooling spindle with 3kw 1 head/1 spindle
Cooling mode	Water cooling( changsheng)
Engraving speed	8000-15000mm/min
Spindle rotate	6000-24000rpm/min
Power supply	220V±10% /50HZ3 phases 60HZ as your choice
Graphic format supported	G code HPG U00.mmg.plt
Software supported	March 3 type3 wentai2002/wentaiV8/Artcam
Working table	Materials holder working table
Stepper motor	Lead shine stepper motor
Vaccum pump	yes
Net Weight/gross weight	1500kg/1680KG

4. Guarantee & service of Machine
Two years quality guaranty, the machine with main parts(excluding the
consumables) shall be changed free of charge when if any problem during the
warranty period.
Service: (Provide whole life technical support, 24h online)
Before sale:
We would always be here to provide any information you need at the first time,
and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is
ready, we would tell you everything goes well here.
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who
could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional
damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
5) Could be remote control if needed.
Our service
we are factory manufacturer, so the quality of every parts of our products is monitered by our experienced technicians, we have confidence that our product will make you find a ready market. And we can also make special machines according to your detail needs. Moreover, our technicians can speak English, they can slove your problems directly in English.
Packing:
All the Laser machine and wood cnc router are packed by the plywood cartons outside, and inner using the steel strcuture to be fixed the machine, becasue during the transportion, Machine easy to be move, we protected it not to broken some easy broken parts.
