Stainless Steel / Aluminum Camlock Coupling Quick Connector

Product Description

Stainless Steel / Aluminum Camlock Coupling Quick Connector
Specifications:
1. High quality with competitive price
2. The best service
3. Free sample
Description:
1. AL Kamlock coupling
(cam and groove quick couping)specifications
2. Standard of our cam and groove coupling:
Our camlock coupling are made to standard of A - A-59326(previously called MIL-C-27487)or DIN 2828.
3. Casting method:
Gravity casting
4. Sizes available:
From 1/2" to 8"
5. Types available:
A. B. C. D. E. F. DC. DP
6. Body material:
Aluminium A356 or A104
We use stainless steel cam levers or brass cam levers.
7. Pins. Rings and Safety clips of our kamlock:
We use steel plated pins. Steel plated rings and Safety clips.
(Note: Safety clips are only available when required by the client, the client have to pay additional if need safely clips)
8. Sealings of our acoples rapidos kamlock en aluminio:
NBR
EPDM
Viton
PTFE envelop gasket
Other materials are available on request.
9. Threads of our racores camlock en aluminio:
NPT
BSP(We usually make the female thread parallel BSPP. Male thread tapered BSPT)
Camlock Coupling Quick Connector:
We offer many types and difference size of Fire Hose Couplings, such as Machino Fire Hose Coupling, John Morris Fire Hose Coupling, French Fire Hose Coupling, American (ANSI Pin) Fire Hose Coupling, JIS(Nakajima )Fire Hose Coupling, STORZ Fire Hose Coupling, UNI45 and UNI70 Fire Hose Coupling, and so on.
And these types of coupling and adaptors are also manufactured in accordance to customers' requirement.

Camlock Coupling
Product	camlock & groove quick coupling, camlock fitting, camlock coupling
	Camlocks also called cam and groove coupling, a kind of hose coupling used to rapidly connect and disconnect fitting on piping or hose, they come in a variety of materials to be used with different liguids and a variety of sizes to accommodate hose or piping diameter.
Application	Quick release coupling for low-pressure systems
Material	Stainless steel(SS) , Aluminum, Brass, Polypropylene(PP), Nylon(NY)
Size	1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8" etc
Thread	Thread BSP, BSPT, NPT, DIN259/2999
Type	A, B, C, D, E, F, DC, DP(A, B, D, F with thread, B, C, D, DC with handles)

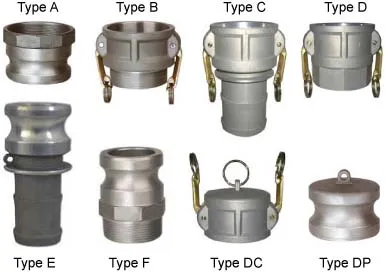

	Type "A", has a male grooved adapter and a female pipe thread (BSP or NPT thread)of the same size. Type "B", has a female camlock end and a male pipe thread of the same size. Type "C", has a female camlock on one end and a male hose tail on the other. Type "D", has a female camlock end and a female pipe thread of the same size. Type "E", has a male camlock on one end and a male hose tail on the other. Type "F", has a male grooved adaptor and a male pipe thread of the same size.
Advantages	1. We are direct factory, best price will offer 2. Established in year 2009, with experiences, quality guaranteed 3. Factory visit welcome 4. With independent open mold capacity, OEM supposed
For detail information please directly contact us.
