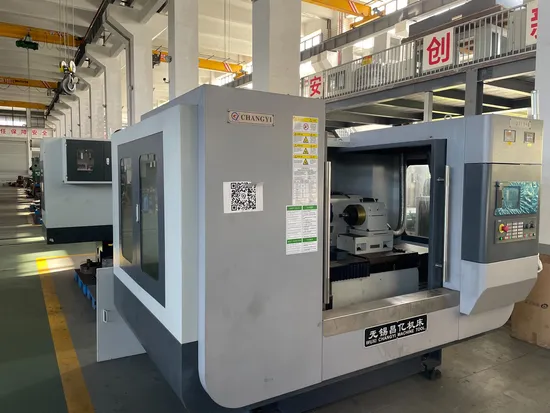

High Efficiency Automatic Multi-Functional B Axis Internal and External CNC Grinding Machine

Product Description

Product Description
Main purposes of the machine tool:
MKF2110+B is a versatile CNC grinder with four axes (X-axis for workpiece lateral feed, Z1 and Z2 axes for longitudinal movement of the grinding wheel, and B-axis for horizontal indexing). It is primarily used for grinding inner cylindrical holes, inner conical holes, outer cylinders, outer conical surfaces, and inner and outer spherical surfaces of workpieces. It includes automatic feed, automatic rough grinding, fine grinding, automatic wheel dressing, automatic compensation, manual compensation, and other functional grinding cycles that are all automatically completed.
It adopts a structural mode featuring workpiece feeding, B-scale indexing (torque turntable), and two independent work tables (grinding wheel racks) moving left and right. Both X and Z axes utilize rolling linear guide rails, powered by servo motors driving ball screws for movement. The rotational speeds of both the workpiece spindle and the grinding wheel spindle are controlled by frequency converters, achieving stepless speed adjustment. The workpiece clamping is achieved through a hydraulic power chuck, and other compatible fixtures can be configured according to the specific requirements of the user's workpiece.
Processing object:
The main processing objects of this machine tool are: it can grind inner cylindrical holes, inner conical holes, outer cylinders, outer conical surfaces, and inner and outer spherical surfaces. It is suitable for the internal and external cylindrical processing of parts with an inner diameter of 10-100mm, an inner hole up to 120mm, an outer diameter of 15-150mm, and a maximum length of 100mm.
Product Parameters
Key Technical Parameters for MKF2110+B Multi-functional CNC Compound Grinding Machine:

Serial number	Name	Specification
1	Grinding hole diameter range	10-100mm
2	Maximum grinding depth of inner hole	120mm
3	Maximum grinding outer diameter	150mm
4	Maximum length of cylindrical grinding	100mm
5	Maximum diameter of workpiece	300mm
6	Maximum load capacity of the workpiece	25kg
7	Inner hole roundness	2μm
8	Inner hole cylindricity	3μm
9	Inner hole surface roundness	Ra0.4
