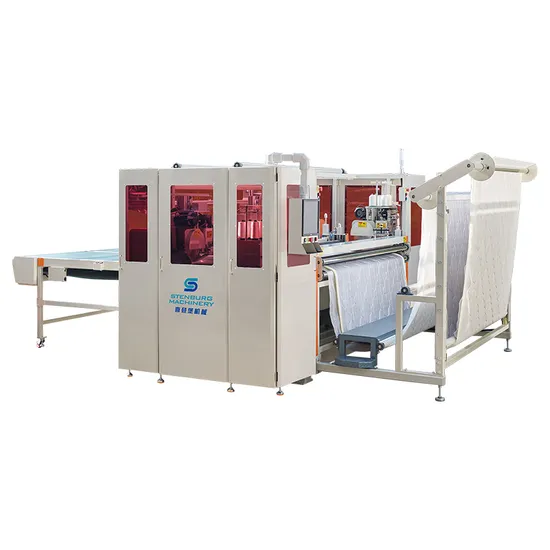

Hy-Fq-2 Four Side Hemming and Cutting Machine Mattress Fabric
| US$83,000.00-99,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HY-FQ-2
Certification
ISO, CE, Mattress Machine
Condition
New
Number of Head
100
Voltage
380V
Type
Computerized Quilting Machine
Width of Quilting
2450mm
Space Between Needles
25.4mm
Total Power Required
7kw
Gross Weight
4500kg
Knitting Machine Cut
Hy-W-Jh
Thickness of Quilting
Less Than 80 mm (for All Patterns)
Transport Package
Plywood Pallet
Specification
21.36cbm
Trademark
Xidengbao
Origin
Guangdong China(Mianland)
HS Code
8452219000
Production Capacity
25 Sets/Month
Product Description
HY-FQ-2 Four Side Hemming And Cutting Machine Technical Characteristics 1.Various parameters are controlled by computer, which is accurate and fast2.Automatic slicing,automatic edge locking, various sizes and specifications are easy to operate
3.The needle and cutter can be lifted,which is convenient for cloth loading and high efficiency
4.The length dimension are adjusted electrically by the conveyor belt, which is convenient
5.The width dimension are controlled by computer, which is convenient and accurate
6.It can be matched with a stacking machine to realize automatic stacking
Technical Specification:
| ( Edge trim ) The Max.X dimension | 2450mm |
| ( Edge trim ) The Min.X dimension | 1450mm |
| ( Cross cut ) The Max.Y dimension | 2250mm |
| ( Cross cut ) The Min.Y dimension | 600mm |
| Thickness | 5~80mm |
| Seam cutting speed | 5~12 m/min(adjustable) |
| Stitch length | 2~10mm |
| Power supply | 380V/50HZ,220V/60HZ |
| Operating air preasure | 0.4~0.8Mpa |
| Total power required | 11KW |
| Machine size | L4500xW1700xH2000 |
| Weight | 3500KG |
| Installation dimension | 5000x4500 ( Including conveyor belt,buffer rack ) |
