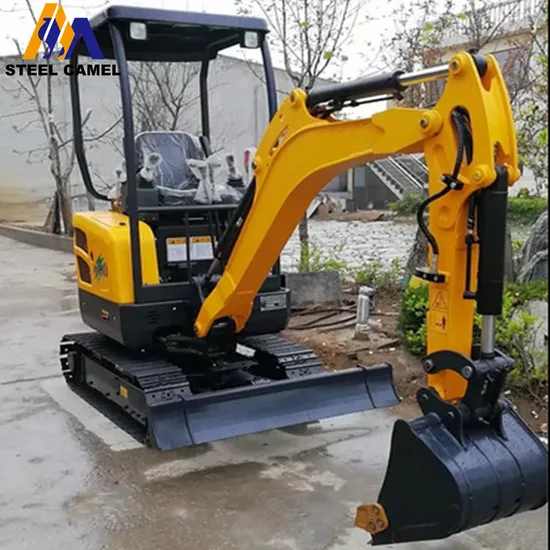

Steel Camel Brand New Small Mini Rubber Track Crawler Backhoe Excavator
| US$9,999.00-13,999.00 | 1 set (MOQ) |
Basic Info.
Model NO.
SC18
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Name
Small Backhoe Excavator
Weight
1.8 Ton, 2 Ton, 2.2 Ton, 6ton, 6.5ton, 7 Ton,
Rotating Degree
360 Degree Rotating
Engine
Yuchai/Laidong/Kubota/Cummins/Xinchai
Rated Power
18~100kw
Attachments
Quick Hitch Adapter, Rock Hammer, Auger, Forklift
Color
Yellow/White/Red/Customized
Service
Engineers Available/Oversea Third Party
Warranty
1 Year or 1000 Working Hours
Delivery Time
Fast Delivery Within 10 to 30 Days
Transport Package
Container
Specification
0.06cbm, 1.8 ton
Trademark
STEEL CAMEL
Origin
Shandong
HS Code
8429521200
Production Capacity
2000 Sets Per Year
Product Description
STEEL CAMEL brand new small mini rubber track crawler backhoe excavatorSC18 Mini Excavator main features: --The SC18 crawler excavator is equipped with china Laidong engine , famous brand main pump and valves, EATON brand driving motor and slewing motor, powerful and reliable
--Compact design with 1050mm width, very smart in narrow working space,
--360° slewing, big boom swing angle, left 75°, right 45°, makes it efficient and high working output.
--Hydraulic pilot servo operation system, easy and smooth operating.
--Equipped with extra pipeline for other attachments like auger, hammer, log grapple etc. Can handle with different works, multifunctional and cost saving.
--Rubber/Steel track available for different working/tracking conditions.
--Closed cabin optional offer biggest operating comfort for all weathers
Excavator technical data:
| ENGINE | |
| Make | LAIDONG |
| Model | 3TE25 |
| Power /Rotation speed | 18.4kw(25HP)@2350rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe(Rubber & steel track) | 230mm |
| Number of track shoe per side(Steel track only) | 38 pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| PERFORMANCE PARAMETER | |
| Standard bucket capacity | 0.06m³ |
| Swing speed | 12 rpm |
| Max. Grade ability | 35° |
| Max. Bucket digging force | 14KN |
| Max. Arm digging force | 10KN |
| Hydraulic system pressure | 16Mpa |
| Machine weight | 1800kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3865mm*1050mm*2270mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 820mm |
| Min.Ground clearance | 210mm |
| Swing radius at tail | 1125mm |
| WORKING RANGE | |
| Max. Digging height | 3365mm |
| Max. Dumping height | 2385mm |
| Max. Digging depth | 2050mm |
| Max. Vertical digging depth | 1955mm |
| Max. Digging radius | 3860mm |
| Min .swing radius | 1720mm |
| Max. Lifting height of blade | 230mm |
| Max. Cutting depth of blade | 275mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |
Excavator attachments:
Excavator loading:
4 sets/20'GP; 8 sets/40'HQ
