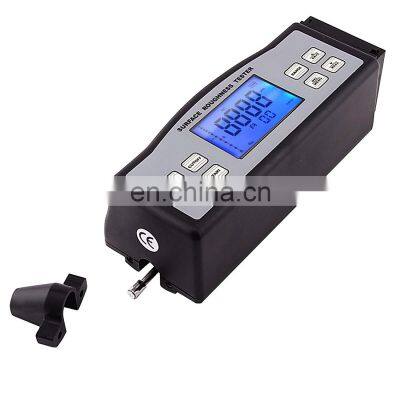

Surface profilometer SRT-6210 portable digital surface roughness measurement Probe Angela 90 surface roughness tester price

Product Description

Product Description
Product Descriptionsurface profilometer SRT-6210 surface roughness measurement Probe Angela 90SRT-6210 Surface Roughness Tester.Widely used in production site to measure surface roughness of various machinery-prcessed parts, calculate corresponding parameters according to selected measuring conditions and clearly display all measurement parameters.Detailed ImagesSRT-6210 Surface Roughness Tester.* Be compatible with standards of ISO,DIN,ANSI and JIS.*Smal in size ,light in weight and easy to use.* Highly sophisticated inductance sensor.*SRT-6210 can measure parameters of Ra,Rz,Rq,Rt.With four wave filtering methods: RC,PC-RC,GAUSS and D-P.Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.*SRT-6200 can measure parameters of :Ra,Rz.*Built-in lithium ion rechargeable battery and control circuit with high capacity.*Manual or automatic power off.Meteric /Imperial.*Use RS-232 data output to connect with PC.*Provide Bluetooth data output chioce..ModelGB/T6062,ISO4278,DIN4768,JIS B,ANSI46.1ParanetersRa,Rq,Rz,RtAccuracy<=+-10%Fluctuation of Display Value<=6%Resolution0.001/0.01/0.1Radius of probe pin5μmMaterial of probe pinDiamondMeasurement Force of probe4mN(0.4gf)Probe angle90Vertical Radius of Guiding Head48mmMaximum Driving Stroke17.5mm/0.7inchPower SupplyBuilt-in Rechargeble Li-ion BatteryDimensions140*52*48mmWeight420gRelated ProductsVM-6320 Vibration Meter HM-6560 Leeb Hardness Tester TM-8812 Ultrasonic Thickness CM8828 coating Gauge thickness gaugeCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Packing & Delivery1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.
