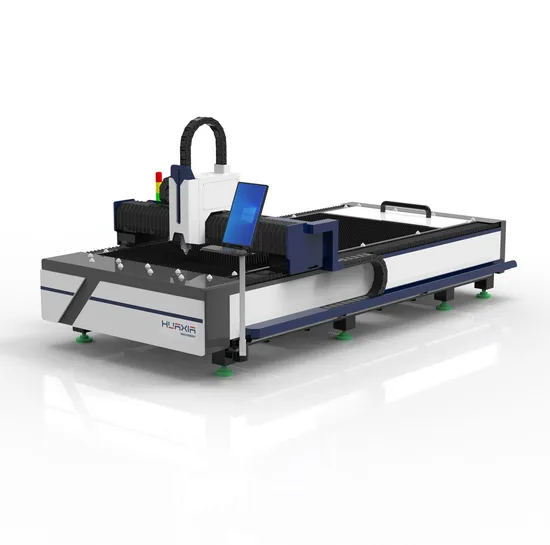

3000W Fiber Laser Cutting Machine 1530 2kw 1530 Fiber Laser Cutting Machine for Stainless

Product Description

Fiber Laser Cutting Machine 1.5KW-30KW for Metal Materials
Machine Features:
1.High performance laser equipment, stable operating system, so that the cutting effect to achieve the best. 2. Perfect cooling, lubrication, dust removal system to ensure stable, efficient and durable machine operation.
3. Single table, equipped with auxiliary loading and unloading plate function, improve processing efficiency.
4. Large size closed box, improve the dust removal effect, avoid light pollution.
5. Automatic height adjustment performance, keep the focal length constant, excellent and stable cutting effect.
6. Gantry type structure, embedded cast aluminum beam, so that the equipment strong rigidity, good stability, good anti-knock performance.

Model	HXF-3015/4015/4020/6020
Working Area	3000*1500mm (customizable)
Laser Generator	Raycus/IPG/MAX
Laser Power	1500w/2000w/3000w/4000W/6000W
Location Accuracy	0.01mm
Repeat Location Accuracy	0.01mm
Max Moving Speed	140m/min
Materials Thickness	Max 40mm
Machine Warranty	3 Years
Applicable Materials	Stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titaniu metc metal plate
Machine Color	Customizable

Fiber Laser Cutting Machine Description:
1. Laser power: 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.
2. Laser generator: JPT, RAYCUS, MAX, RECI, IPG etc. 3. Cutting materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
5. China fiber laser machine cutting manufactuers, low cost and best quality, with CE, ISO etc certificates.
Auto-focus laser head
The laser head is made of high quality materials in accordance with advanced technology. Professional laser cutting head, stable and reliable technology, completely sealed inside the laser head, can avoid dust pollution to the optical part. The protective lens is installed in a drawer, which is convenient for replacement.
Laser cutting CNC system
The special CNC system of intelligent laser cutting machine is adopted to realize automatic edge searching, automatic typesetting, automatic focusing, automatic cutting, convenience and efficiency.A set of software specially customized for laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.
High precision bed
High quality square tube welding and three pass welding process are adopted, which are sturdy and durable. The structural materials are annealed at high temperature to eliminate internal stress, so that the machine bed can maintain good mechanical properties such as tensile strength, toughness, hardness and deformation resistance.
