US$3,000.00-15,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Flange
Controlling Mode
Pneumatic
Max. Processing Dia.
185mm
Transport Package
Woodencase
Production Capacity
200sets Per Year
Product Description

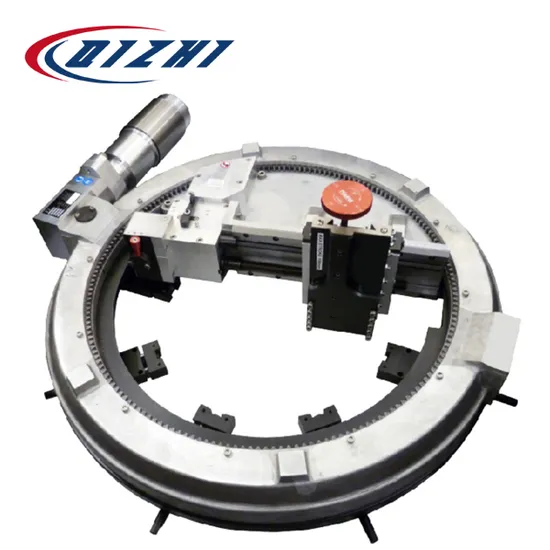

QIZHI External Installed Pneumatic Flange Facing Machine
The internal and external installed flange end facing machines adopt innovative design, adopting new linear ball screw technology and power feed tool holders. It has below features: Easy to assemble Independent locking base After product delivery, it can be immediately used for standard flanges and sealing grooves processing. Specifications
| Model | Facing Range | Installation Mode | Drive Mode |
| Pneumatic | hydraulic |
| QZ180MME | 0-7" | 0-185mm | External installed | * | |
| QZ300MME | 0-12" | 0-305mm | * | |
| QZ600MME | 0-24" | 0-610mm | * | |
| QZ355MM | 2-14" | 50-355mm | Internal installed | * | |
| QZ610MM* | 2-24" | 50-610mm | * | |
| QZ860MM | 6-34" | 152-865mm | * | |
| QZ1000MM | 6-40" | 152-1016mm | * | |
| QZ1500MM | 12-60" | 305-1500mm | * | |
| QZ2000MM | 24-80" | 610-2032mm | * | * |
| QZ3000MM | 42-120" | 1067-3050mm | * | * |
| QZ3500MM | 55-140" | 1270-3556mm | * | * |
| QZ4000MM | 60-160" | 1524-4064mm | * | * |
Tight spiral transmission Rotatable tool holder Rotating anti-pinch hand structure Quick assembly
