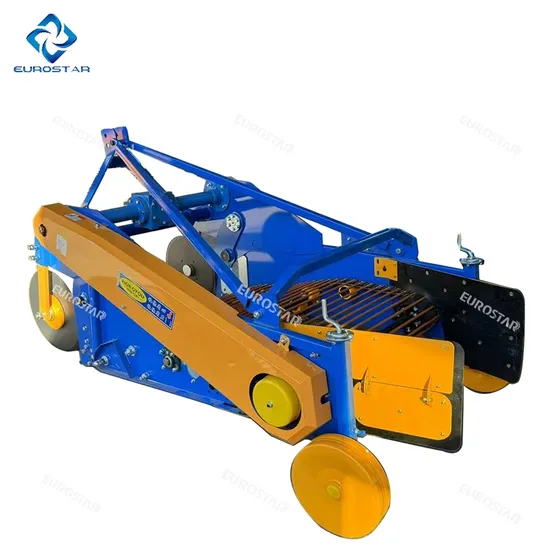

Chinese Multifunctional Potato Digger Harvesting Machine

Product Description

Potato harvester with tractors
This series harvester is suitable for harvesting potato sweet potato garlic and other underground rhizome crops
Potato harvester Description
1.The reciprocating sifting can conveys the potatoes and soil onto a vibrating sieve grid2.Our potato digger is mainly used for reaping potato, sweet potato, peanut, onions, garlic, Chinese yam, taro and otherunderground rhizome crops.3.It has the advantages of high efficiency, low breakage, fast to leak the soil, long service life.4. Key components adopt international advanced technology, to improve the whole life
Potato harvester product technical parameters

4UX Cut Plate Potato Harvester is a fixed shovel harvester driven by a four-wheel tractor
Model	4UX-83(QP)	4UX-90(QP)	4UX-100(QP)	4UX-110(QP)
Structural Style	Three point suspension
Walking Mode	Wheel type
Number of tires/tracks	2 PCS
Tire/track spacing (center)	1010mm	1080mm	1180mm	1280mm
Ground clearance	170mm
Working dimensions (LxWxH)	2130× 1120× 1160mm	2130× 1190× 1160mm	2130× 1290× 1160mm	2130× 1390× 1160mm
Overall weight		310kg	330kg	350kg
Working width	830mm	900mm	1000mm	1100mm
Work efficiency	1300-2000m2/h	1300-2600m2/h	1300-3300m2/h	1300-3300m2/h
Supporting power	≥40HP	≥40HP	≥50HP	≥50HP
Supporting power output shaft speed	540r/min
Supporting suspension width	560mm	570mm	570mm	570mm
Excavation device type	Blade fixed blade
Blade material	65 Mn steel
Excavation depth adjustment range	0-250mm
The min size of picking up	38.5mm
Type of cleaning and separation device	vibrating screen
Type of conveying device	Grid chain type
Gap between conveyor chains (center to center distance)	50mm
Chain rod material	55CrSi
Collection method	Ground picking
4UD Potato Harvester is a dynamic shovel potato harvester driven by a four-wheel tractor
Model	4UD-83	4UD-90	4UD-100	4UD-110	4UD-130	4UD-160
Working dimensions (LxWxH) mm	2300× 1100× 1150	2300× 1200× 1150	2300× 1300× 1150	2300× 1400× 1150	2300× 1600× 1150	2300× 1900× 1150
Transport dimensions (LxWxH) mm	2000× 1100× 1150	2000× 1200× 1150	2000× 1300× 1150	2000× 1400× 1150	2000× 1600× 1150	2000× 1900× 1150
Auxiliary power(4WD)	≥40HP	≥40HP	≥50HP	≥50HP	≥70HP	≥70HP
Structural Style	Three point suspension	Three point suspension	Three point suspension	Three point suspension	Three point suspension	Three point suspension
Structural Quality	415kg	450kg	475kg	550kg	610kg	660kg
Working width	83cm	90cm	100cm	110cm	130cm	160cm
Work efficiency	≥1500m2	≥1700m2	≥1900m2	≥2100m2	≥1500m2	≥1520m2
Excavation shovel type	Moving shovel	Moving shovel	Moving shovel	Moving shovel	Moving shovel	Moving shovel
Furrower	Optional	Optional	Optional	Optional	Optional	Optional
Ground rolling
Excavation depth	0~250mm	0~250mm	0~250mm	0~250mm	0~250mm	0~250mm
Chain rod gap	38.5mm	38.5mm	38.5mm	38.5mm	38.5mm	38.5mm
Chain rod material	55CrSi	55CrSi	55CrSi	55CrSi	55CrSi	55CrSi
4UC Potato Harvester is a potato harvester driven by a walking tractor
Model	4UC-50	4UC-60	4UC-70	4UC-82	4UC-90	4UC-100
Structural Style	Traction type
Number of tires/tracks	2 PCS
Tire/track spacing (center)	500mm	600mm	700mm	820mm	900mm	1000mm
Working dimensions (LxWxH) mm	1060×670×590	1060×770×590	1060×870×590	1060×990×590	1060× 1070×590	1060× 1170×590
Overall weight	95kg	95kg	95kg	100kg	100kg	100kg
Working width	500mm	600mm	700mm	820mm	900mm	1000mm
Work efficiency	1300-2600m2/h
Supporting power	≥20HP
Supporting power output shaft speed	540r/min
Excavation device type	MOVABLE BLADE
Blade material	65 Mn Steel
Excavation depth adjustment range	0-250mm
Type of depth limiting mechanism	Depth wheel
Discharge Method	Ground picking
