ZD 6w AC Speed Control Gear Motor

Product Description

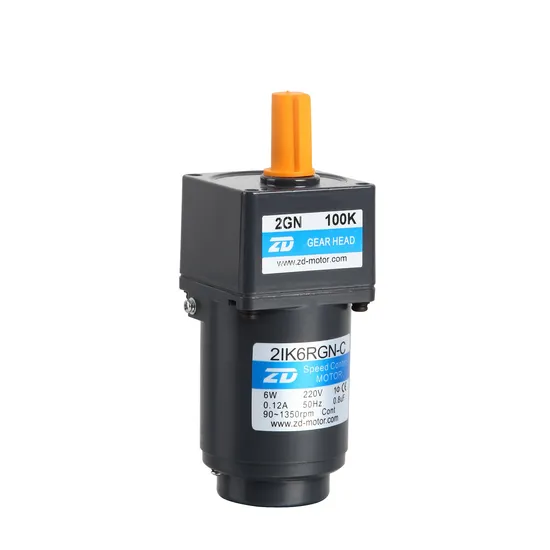

60mm 6W AC Speed Control Gear Motor
Features:
1) Dimensions: 60mm
2) Power: 6, 10W
3) Voltage: 110V, 220V
4) Speed: 50Hz: 90~ 1350rpm, 60Hz: 90~ 1650rpm
5) Reduction ratio: 3~ 750K
Usage:
Our can be widely used in medical appliance, packing mechanism, printing mechanism, cup making machine, textile machinery, and so on.
Certification: CE, UL, ISO9001 and RoHS

Model * Type		Output power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN. m	Current A	Capacitor μ F
Prnion Shaft	Round Shaft					1200r/min mN. m	90r/min mN. m
21K6RGN-AJ		6	1ph100	50	90-1400	50	30, 29	35	0.260, 0.280	3.5
				60	90-1700
21K6RGN-EJ		6	1ph110	60	90-1700	50	29	30	0.200, 0.230	2.0
			1ph120
21K6RGN-CE		6	1ph220	50	90-1400	55	29	35	0.150	0.8
			1ph230
21K6RGN-HE		6	1ph220	60	90-1700	55	29	35	0.150	0.8
			1ph230

Company Information
FAQ
Q: What're your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
Please contact us if you have detailed requests, thank you !
