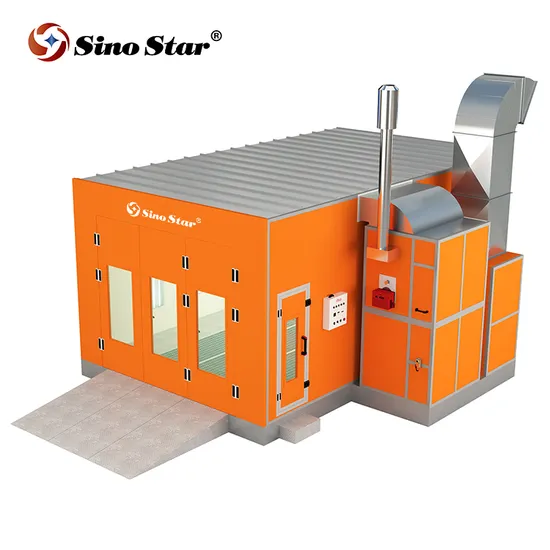

Ss-9400 Ce ISO Approval Paint Booth/Electric Heater Spray Booth
Basic Info.
Model NO.
SS-9400
Substrate
Steel
Brand
Sino Star
Coating
Painting
Heating Mode
Electric
Paint Mist Treatment
Dry-type
Condition
New
Warranty
1 Years
Total Power
17kw
Front Door(mm)
3000*2600(W*H)
Service Door (mm)
650*1800(W*H)
Air Capacity for Fresh Air
25000m3/H
Transport Package
Exporting Packing
Specification
3800kg
Trademark
SINO STAR
Origin
China
Production Capacity
50/ Month
Product Description
SS-9400 Electric heating auto Baking Oven Advanced configuration Spray Booth heated by natural gas DieselProduct Name: Spray Booth
Product Model: SS-9400
Product series:
Auto Spray Paint Booth/Advanced Car Spray Booth/Diesel Fuel Burner Spray Booth/China Inflatale Spray Booth/water based paint Spray Booth/SPRAY-PAINTED WORKSHOP/coating room/powder coating/ spray booth/spray tan booth/car spray paint baking booth/furniture spray booth paint booth/automotive spary booth/useful spary booth/small spary booth/cheap spary booth/industrial painting equipment
| MODEL:SS-9400 | ||||||
| Outside Dimension (mm) | 7006*5560*3420(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) | |||
| Front Door(mm) | 3000*2600(W*H) | Service Door (mm) | 650*1800(W*H) | |||
| Total Power | 18KW | |||||
| Cabin System | Wall panel | 50mm EPS sandwich panel, steel sheet thickness: 0.426mm | ||||
| Ceiling panel | 0.8mm galvanized steel sheet. | |||||
| Basement | 300mm depth, three rows grids and three rows checkered plates. | |||||
| Ramps | 3 pieces 2000*900mm ramps | |||||
| Glass | 5mmsafety tempered glass | |||||
| Windows | Square glass windows | |||||
| Air Make-up System | Air Inlet fan system | 2*4kwYDW4.5L centrifugal fan | ||||
| Exhausted fan system | 1*7.5kw YDW5.6M centrifugal fan | |||||
| Air capacity for fresh air | 25000m3/h | |||||
| Exhausted ducting | 4meters straight ducting, one 90°elbow and one 45°elbow. | |||||
| Purification System | Pre-filter | G3 grade | ||||
| Ceiling filter | EU5 / F5 | |||||
| Floor filter | Fiber glass filter / G3 grade | |||||
| Exhausted fan filters | Fiber glass filter and active carbon | |||||
| Heating System | Heat exchanger | SUS304 material, argon arc welding. | ||||
| Heating burner: | RielloG20 diesel oil burner | |||||
| Heating productivity | 180000Kcal/h | |||||
| Spray to baking switch | 20N BELIMO brand electrical damper | |||||
| Chimney ducting | 3 meters stainless ducting and one chimney elbow | |||||
| Max heating temperature | 80ºC | |||||
| fuel consumption | 6-8L/vehicle | |||||
| Lighting System | Ceiling lights | 8 Units, each 4 * 18W LED lamps. Total 576 W | ||||
| Side lights | 8 Units, each 2 * 18W LED lamps, Total 288W | |||||
| Illumination | 900LUX | |||||
| Controlling System | Switched control panel | Spraying&baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge | ||||
