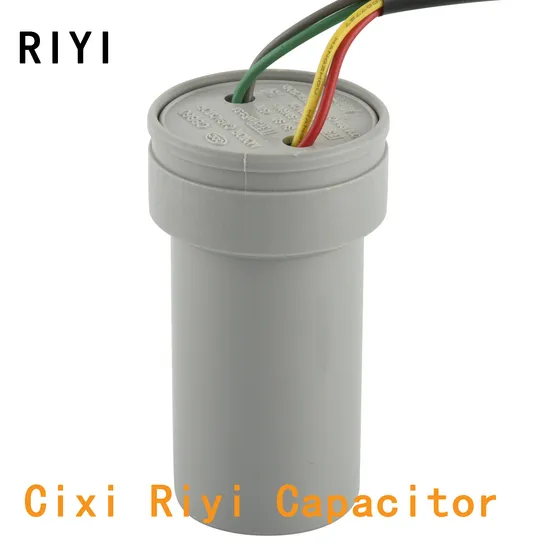

Cbb60 13+5UF 450V S0 TUV AC Motor Run Capacitor for Washing Machine

Product Description

Size: φ50*90
CBB60 Capacitor Of Alternating Current Motor
1. Features and uses
The capacitor has advantages of low dissipation,high insulance resistance,good self-healing character,and steady electricity performance,anti-striking current,strong over-carrying capacity,etc.in generally,it uses rectangular burning-proof case and epoxy resin to seal.It is applied in electric fan,exhaustfan electric pump,etc for the help of motor's starting and running
2. Technical parameter
Rated Voltage: 220VAC~500VAC
Rated Frequency: 50/60Hz
Capacitance Range: 0.8~120F
Capacitance Tolerance: ±5%
Tangent of loss angle tanδ≤0.2% (20ºC,100Hz)
Standing Voltage:
Between Terminals: 2.0Un/2s (No flashover or permanent breakdown)
Between terminals and case: ≥2100VAC/2s (No dielectric breakdown or flashover)
Highest allowable voltage: 1.1times of rated voltage
Maximum allowable circuit: 1.3times of rated circuit
Class of safety protection: S0
Executing Standards: IEC60252,GB/T 3667.1,UL810
