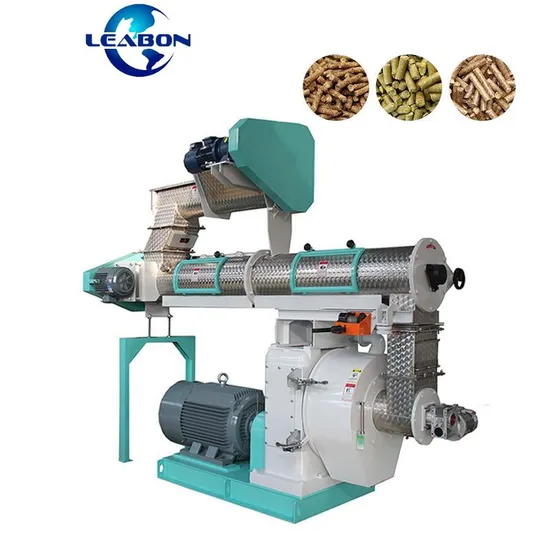

Animal Feed Pellet Mill Livestock Poultry Feed Pellet Making Machine
| US$600.00-4,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PM/CM/SZLH Series
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Granular
Warranty
One Year
Name
Feed Pellet Machine
Dimension
1.35*1.3*1.6
Weight(Kg)
960
Inside Diameter of Ring Die(mm)
304
Pellet Diameter(mm)
Φ1.5,Φ2,Φ2.5,etc
Feeding Motor(Kw)
0.75
Revolving Speed of Ring Die (R/Min)
330
Output(Kg/H)
1500-2000
Feature
High Strength Belt and High Quality Bearing
Advantages
Teady Running and Low Noise,etc
Raw Material
Sorghum,Soybean,Corn,etc
Application
Poultry Animal
Certification
CE
Spare Parts
Ring Die and Roller
Our Service
24h After-Sale Service
Transport Package
Wooden Box
Specification
1000kg
Trademark
LEABON
Origin
Henan China
HS Code
8438800000
Production Capacity
300sets/Month
Packaging & Delivery
Package Size
135.00cm * 130.00cm * 160.00cm
Package Gross Weight
960.000kg
Product Description
Animal Feed Pellet Mill Livestock Poultry Feed Pellet Making MachineProduct Description
Introduction of Feed Pellet Machine
1. Our Pelletizers are used for making wood and feedstuff pellets. 2. We have be approved by European SGS. 3. Advanced and reliable technology. 4. High throughput capacity and high quality pellets. 5. Low-maintenance and service-friendly. 6. Cost-efficient and space-saving.
Product Parameters
Ring Die Feed Pellet Machine
| Parameter/Model | CM-25A | CM-25B | CM-30B |
| Output(kg/h) | 1000-1200 | 1000-1500 | 1500-2000 |
| Power (kw) | 22 | 22 | 30 |
| Feeding motor(kw) | / | 0.75 | 0.75 |
| Revolving Speed of ring die (r/min) | 306 | 306 | 330 |
| Inside diameter of ring die(mm) | 250 | 250 | 304 |
| Pellet diameter(mm) | Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8 | Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8 | |
| Dimension(m) | 1.1*1.15*1.25 | 1.1*1.15*1.25 | 1.35*1.3*1.6 |
| Weight(kg) | 625 | 710 | 960 |
| Model | Main power(kw) | Out-put(t/h) | PowerofConditioner(kw) | Power of screwfeeder(kw) | In-side of rind die(mm) |
| SZLH320 | 37 | 2-3 | 2.2 | 0.75 | 320 |
| SZLH350 | 55 | 3-5 | 3 | 0.75 | 350 |
| SZLH400 | 75/90 | 3-10 | 5.5 | 1.5 | 400 |
| SZLH420 | 90/110 | 3-14 | 5.5 | 1.5 | 420 |
| SZLH508 | 110/132/160 | 6-15 | 7.5 | 2.2 | 508 |
| SZLH558 | 180/200 | 10-20 | 11 | 2.2 | 558 |
| SZLH678 | 220/250 | 25-30 | 18.5 | 3 | 678 |
Flat Die Feed Pellet Machine
| Model | Power(kw) | Capacity(kg/h) | Weight(kg) | Dimension(mm) |
| PM-200B | 7.5 | 200-300 | 230 | 100*430*950 |
| PM-230B | 11 | 300-400 | 320 | 1140*470*970 |
| PM-260B | 15 | 400-600 | 380 | 1200*520*1070 |
| PM-300B | 22 | 600-800 | /450 | 1270*520*1070 |
Spare Parts
More Pictures
Raw Material and Final Product
Application
Feed Pellet Production Line
Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
Our transport operators & delivery facilities are ready on time and when the contains arrive at the factory , they are guaranteed to ship according to the scales.
Customer Feedback
Company Profile
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand.
6.The engineer is available to service machinery oversea .
FAQ:
| Q1:what's raw material suitable for making feed pellet? ------Corn,soybean,wheat,rice,wheat bran,fish meal,bone powder,meat, alfafa,silage,straw,grass, hay etc. |
| Q2:What's the capacity of your feed pellet machine can be choose? ------The SZLH series have 0.5-1.5T/H,2-3T/H,3-5T/H,3-10 T/H,3-14 T/H,6-15 T/H,10-20 T/H,25-30 T/H to choose from; the CM series have 100-200kg/h, 500-700kg/h, 1000-1200kg/h, 100-1500kg/h, 1500-2000kg/h to choose from. |
| Q3:What's the certification of your feed pellet machine? ------CE Certification. |
| Q4:What's the warranty of feed pellet machine? ------Warranty:1 Year(except spare parts). |
| Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram. |
