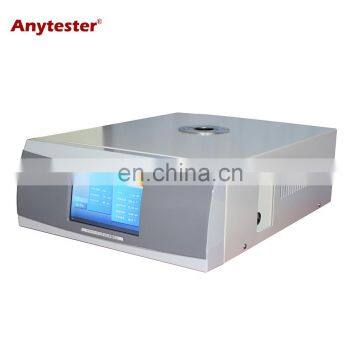

Differential Scanning Calorimeter

Product Description

Product Description
Product DescriptionHY4510 Differential Scanning Calorimeter is used to determine and research the melting and crystallization process, glass transition temperature, oxidation induction time (OIT), reaction heat, heat enthalpy, melting point, phase transition, etc.Features1.Suitable for solid, powder and liquid samples, except gas sample2.LCD display, touch screen operation3.In-built atmosphere device, can simultaneously connect with Nitrogen and Oxygen, automatic switchover4.Digital gas mass flow meter, accurate to control the gas flow5.Bilateral control: main machine control and software control, friendly operation interface, easy to operate6.Two user interface on software, one is for DSC test, the other is for OIT test7.Real-time display DSC-Temp curve or DSC-time & Temp-time curveSpecification ModelHY4510DSC range 0~±500mWTemperature range RT~800℃, air cooling (standard configuration)Heating speed 1~60℃/minTemperature resolution 0.1℃Temperature fluctuation ±0.1℃Temperature repeatability ±0.1℃DSC resolution 0. 05μWDSC accuracy 0.05μWDSC sensitivity 0.05μWTemperature control mode Heating up, keeping temperature, cooling down (program control)Display mode LCD touch screen Data interface USBPower supplyAC220V, 50Hz
