Manageable Waste Tyre Rubber Recycling Machine with Shredder

Product Description

Product DescriptionOur company adheres to innovative waste tires processing solutions and is committed to promoting a circular economy. Through technological innovation and sustainable development, we transform waste resources into valuable products and contribute to environmental protection.
Shredding:
Shredding is the core component of tire recycling, breaking down the tires into smaller pieces for further processing. High-quality shredders are essential for this step, ensuring a uniform and controlled output. The resulting shredded material can be used for various applications, including the production of tire-derived fuel.
Steel Separation:
After shredding, the tire-derived material is processed to separate steel from rubber. Utilize magnetic separation techniques to extract steel wires, which can be recycled separately. This steel byproduct has its own market value and can contribute to the overall profitability by covering some basic costs.
Granulation:
Depending on the desired end product, the shredded material can undergo further processing through granulation. Granulating yields fine rubber particles that can be used in landscaping, sports fields, or as an additive in asphalt. Further granulation can produce powder rubber, which has numerous applications.
Quality Control :
Maintain rigorous quality control throughout the tire recycling process. Regularly test the output materials to ensure they meet industry standards. A commitment to quality is fundamental in recycling industries and massively enhances the marketability of your recycled products.
Rubber shredder parameter

Name		610 type	710 type	810 type
No	Component	Technical	Technical	Technical
1	Helical roller	610mm *1000mm	710mm*1000mm	810mm*1200mm
2	Straight tooth roller	510mm*1000mm	610mm*1000mm	710mm*1200mm
3	20 mesh Rubber powder	1000-1200kg	1200-1500kg	1500-2000kg
4	Dimension	5400mm*2000mm*1400mm	6200mm*2260mm*1700mm	6400mm*2700mm*2400mm
5	Motor power	Y2-325M2-6 -200-220kw	Y2-355m2-6 -250kw-280kw	Y2-400m2-8 -315kw
Auxiliary machine
No	Component	Total power	Total power	Total power
1	main vibrating screen	29kw	31kw	48kw
2	secondary vibrating screen
3	9000 magnetic separator
4	rubber powder feeding belt
5	anti-tying belt machine
6	12000 magnetic separator
7	rubber powder collector

Production process diagram

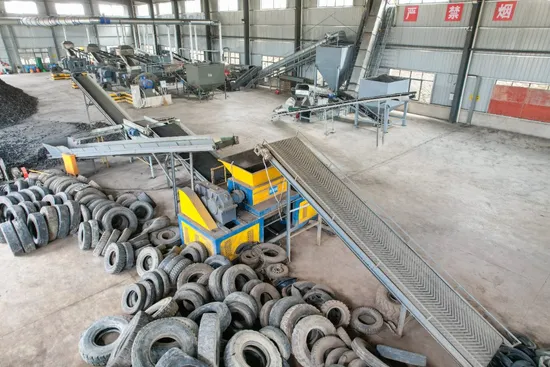

The waste tire recycling production line can be designed according to customer requirements, recycling tires within the diameter range of 400-3000mm, with strong applicability. The discharge size can be controlled within the range of 5-100mm, and the output can reach 200-10000kg/h.
The production line adopts a PLC control system, which is easy to operate and maintain, and has the characteristics of low energy consumption and long service life.
Double Shaft Shredder - Double DriveShredder Parameter:

Steel Wire Removal Process
1	Tire Steel Wire Drawing Machine	Remove the tire bead wire
Rubber Block Process
2	Shredder with rolling screen	Shredding the tire into ≤50mm rubber pieces
Wire separation
3	Rubber Grinder	Peel the capillary wire in the tire and obtain 1-5mm rubber particles
Rubber Granulating Process
4	Rubber Granulating Machine	Grind the rubber to 15-200 mesh as required
Dust Removal Process
5	Magnetic Separator	Remove wire from rubber particles
6	Fiber separator	Separation of fibers from tire particles
7	Dust removal equipment	Dust removal

Product Parameters

Double-shaft shredder	Crush waste tires of various sizes, using high alloy steel imported from Europe as cutting tools, with a detachable and interchangeable double row knife structure design to improve tool utilization rate
Steel wire separator	Cut the rubber block through moving knife and fixed knife,Qualified rubber particles and steel wires are discharged through the sieve
Conveyor	The material surface of the rack has undergone rust removal treatment
Magnetic separator	The type of magnetic separator is permanent magnet self dumping type, which can effectively screen the separated steel wire.
Vibrating screen	Separate the steel wire from the large rubber block/steel wire through vibration
Electronic control system	The main control cabinet and control platform are independent of each other, and the design of touch screen and button control mode enables operation,The control interface is more user-friendly and easy to operate

Company ProfileQingdao LongyuanBaihong Machinery Equipment Co., Ltd. has taken the recycling of waste resources and the creation of a green ecological environment as its own responsibility. Our company mainly produces fully automatic waste tires, waste rubber, waste plastic, and oil sludge cracking equipment. At the same time, our company integrates front-end processing, mid end cracking equipment, and back-end carbon black grinding and granulation, research and development and manufacturing, connecting the entire production chain to achieve low energy consumption, full intelligence, truly achieving the intelligent, green, and environmentally friendly resource reuse of waste tires through cracking, "eating, drying, and squeezing".
Certifications
Packaging & Shipping
FAQQ: Why Choose Us?
1). We are manufacturer with own factory for many years with CE Certification
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
Q: What Is Our Service?
Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning
