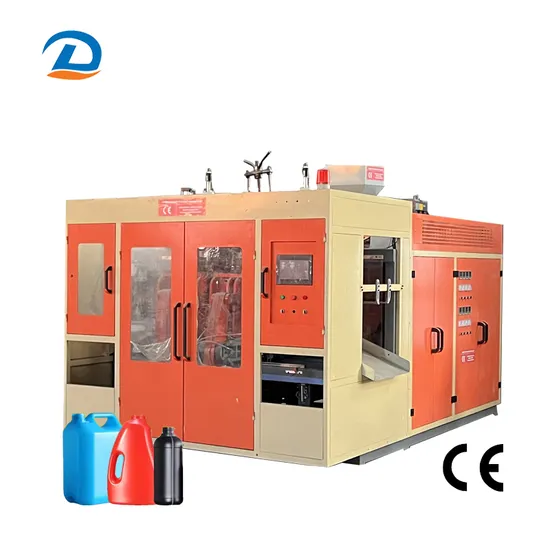

Blow Molding Making Machine Production Line 50ml to 1000ml PP Plastic Bottle Extrusion Blow Moulding Machines

Product Description

Product Description
Product Parameters

Model	YSD-80	YSD-90	YSD-100
Maximum product volume L	≤10	20	30
Screw diameter mm	80	90	100
Screw long diameter ratio	1:26
Extruder motor power KW	18.5-22	30-35	37
Plasticization capacity kg/h	85-100	120-150	170-200
Nose	1-6
Number of jobs	double station
Lock mode form	Servo hydraulic pressure
Wall thickness controller	100	100 points	100 points
Storage tank L	5	7.5	10
Heating section	6-10	9-13	9-13
Heating power Kw	15	20	42
Molding T	8-13T	20	43
Servo motor KW	11	11	11-15
Template size(width * height) mm	550*450	690*800	Depends on product
Template openg mm	700	1200	500-1400
Maximum open and closed mode travel mm	350	900	900
Squeeze exit die maximum diameter mm	260	100-300	Depends on product
Gas source pressure Mpa	0.8
Cooling water usage Mpa	0.6
Size M	3.4*1.9*2.0	3.9*2.5*2.6	4.2*2.5*2.6
Total installed power km	34	55	80
Total weight of machine T	5	6	8

Detailed Photos
We have exporte to all over the worlds. for example Australia, Indonesia,Singapore, Thailand, Cambodia, Vietnam, Bangladesh,India,Pakistan, Mexico, Peru,Chile, Brazil, Egypt, South Africa, Nigeria, Sierra Leone, Sudan, Mali, Kazakhstan,Kyrgyzstan,Turkey, Iraq,etc. Certifications
Our Advantages
Packaging & Shipping
FAQ
1. Can I make milk bottle on this machine Yes, you can. Milk bottle, detergent bottle,pattern pot are available on the machine.2. What shall I provide to you for offer?Please send us your bottle picture with width,length,weights etc and better to send samples.3. What kinds of materials the blow machine make? The blow molding machine can make HDPE,PP material bottles.4. What is your delivery time? 30 days to 50days.5. How can I trust your machine ?- We have more than 10 years experience have own design team and experience
engineer. - You can visit us to check.
- We give professional guidance service during enquiry period.
- We provide after sale install service to abroad clients.
