Automatically Cotton Wool Lab Bobbin Yarn Dyeing Machine

Product Description

Product Description
Product Description

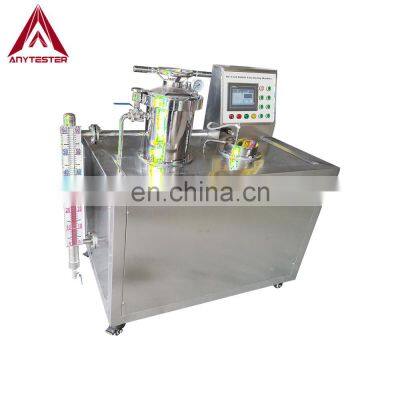

AT291B Lab Bobbin Yarn Dyeing Machine is mainly used to carry out the dyeing, scouring, blenching and washing of loose cotton, wool or chemical fiber and relative bobbin yarn. It is also suitable to dye fabric of small-lot.
Specification

Model	AT291B
Dyeing position	1
Max. working capacity	3kg
Max. working pressure	0.4Mpa
Designed max. pressure	0.5Mpa
Max. working temperature	135℃
Designed max. temperature	140℃
Dyeing medium	Dye liquor
Liquor ratio	1:6~1:15
Dyeing cylinder size	¢200×700mm
Heating mode	Electric heating
Power supply	AC380V 50Hz, three-phase
Dimensions	1250×800×1350mm(L×W×H)

Details & Features
★ Parts contacting with dye liquor are made of anti-corrosion stainless steel.★ Touch screen and PLC automatically control the whole procedure with high degree of automation.
★ Dye liquor circulating mode is controlled by anti-corrosion mixed-flow pump with flow-direction-changing device to circulate the dye liquor from inside to outside or from outside to inside.
★ O-type sealing ring of silicone rubber.
★ Main dyeing cylinder with level indication, safety interlock mechanism, stainless steel safety valve and manual cover; the manual cover with safety protection; if temperature in main cylinder is more than 85℃, the manual cover can be opened.
★ Compact structure and low liquor ratio.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery

Packaging
Dimensions	660*680*780mm
Weight	120kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
					FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union
Delivery Time	7~10days after receiving payment for one container
