Largest Mini Hydraulic Excavator Swe35UF Zero-Tail Rops Fops Cab Outfitted AC Heat Digging Force 31.8 kN Bucket 22.53 kN Arm Digging Depth 10′3" Tiltrotator

Product Description

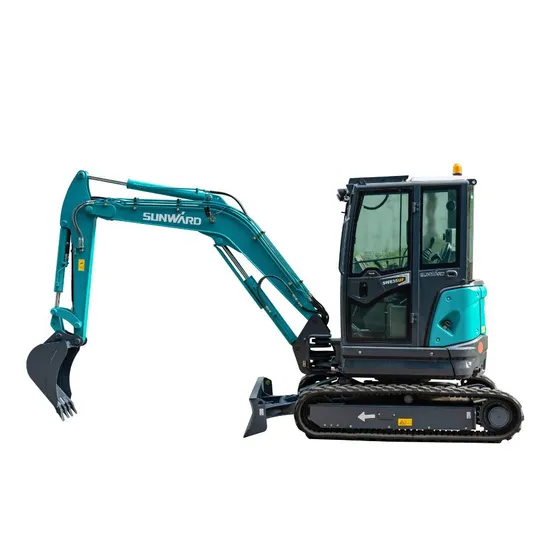

Largest mini hydraulic excavator SWE35UF zero-tail ROPS FOPS cab outfitted AC heat digging force 31.8 kN bucket 22.53 kN arm digging depth 10'3" Tiltrotator
On top of its EU certification, the Sunward SWE 35UF, like all Sunward machines on the European market, is designed to meet European customer needs.
WELL-EQUIPPED FROM THE OUTSET
This slightly Sunward SWE 35UF mini excavator has it all from the day it leaves the factory:
- Auto idle engine to save fuel and limit the engine's consumption. - While other manufacturers usually use a flow throttle (because it's cheaper), we at Sunward opt for a Load Sensing (hydraulic) system, which provides better energy-saving possibilities.
- Safety valves for the boom cylinder for safer operations.
- Auto-shifting traveling motor for smooth operations to the operator.
- TOPS & FOPS cab.
- Battery cut-off switch for safer operations and prolonged battery lifetime and power - which is especially appreciated in the cold weather of Scandinavian countries.
- Double Acting Hydraulic Circuit
- Factory-fitted Hydraulic Quick Hitch Lines
- Factory-fitted Hammer & Rotation Line
- Factory-fitted Case Drain Line
- Factory-fitted One hydraulic pilot control with a double contact switch
- Factory-fitted Tiltrotator Configured Joystick Controls (tiltrotator of your choice)
- 4 LED work lights as standard: 2 on the front of the cab, 1 on the left side of the boom, and 1 on the backTechnical Specifications

Type of cab		cabin/canopy
Bucket capacity,std.		m3	0.11
Bucket width		mm	520
Machine weight		kg	3850/3750
Dimensions	Overall length	mm	4890
	Overall height	mm	2545
	Overall width	mm	1700
	Ground clearance	mm	270
Engine	Brand	KUBOTA
	Model	D1703-E4B-SWD-1
	Displacement	L	1.647
	Output	kW/rpm	18.5/2200
Working ranges	Max cutting height	mm	4925
	Max loading height	mm	3400
	Max digging depth	mm	3120
	Max vertical wall digging depth	mm	5260
	Max digging reach	mm	5390
	Boom swing angle(ieft/right)	o	72/44
	Front swing radius	mm	2263
	Tail swing radius	mm	850
	Max digging force( Arm)	kN	22.53
	Max digging force( Bucket)	kN	31.8
Track	Type		Rubber crawler
	Track Width	mm	300
Undercarrige	Track Length	mm	2163
	Length to center of Rollers	mm	1670
	Lenhth to center of track	mm	1400
	Travelling speed( High/Low)	km/h	4.2/2.3
	Gradeability	deg	30
Swing speed		rpm	9
Ground pressure		kpa	32.3
Dozer size	Width	mm	1700
	Height	mm	366
	Lifting capacity(Height/Depth)	mm	337/376
Hydraulic pumps	Type		1 variable plunger pump
	Displacement	L/min	1*40
	Hydraulic pressure	Mpa	24.5
Fuel tank capacity		L	40
Hydraulic oil tank capacity		L	41

Load Capacity

Lift Point Height	Lift Point Radius(MAX)		Lift Point Radius(4.0m)		Lift Point Radius(3.5m)		Lift Point Radius(3.0m)		Lift Point Radius(2.5m)
	Over-front(kg)	Over-side(kg)	Over-front(kg)	Over-side(kg)	Over-front(kg)	Over-side(kg)	Over-front(kg)	Over-side(kg)	Over-front(kg)	Over-side(kg)
3.0m	687.3*	382.5					-
2.0m	774.3*	292.5	817.8*	382.5	878.7*	472.5	1017.9*	645.0	1226.7*	847.5
1.0	809.1*	262.5	957*	337.5	1078.8*	427.5	1357.2*	555.0	1853.1*	757.5
