Sf9010 Woodworking Machine Semi-Automatic Wood Pallet Making Machine

Product Description

Product Description

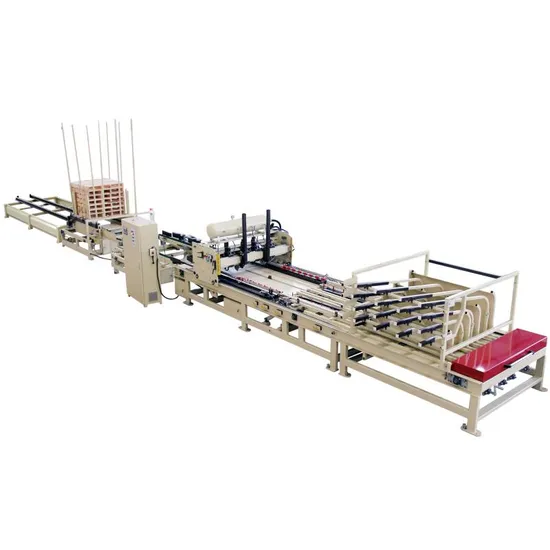

Sf9010 Woodworking Machine Semi-Automatic Wood Pallet Making Machine
SF9010 automatic stringer pallet nailing machine, design for stringer/US pallets, manual load wood, automatic nailing, 8h productivity about 1000pc.
The machine consist with three main parts, nailing head, stacking table, out-feeding table.
Nailing gun can be N70 or N80, and maximum 4pc nailing gun, distance and height is adjustable.
Our machine is computer-controlled, auto control and accurate positioning of nails, auto rotate pallet, auto stack, can greatly improve productivity and precision, can replace manually or traditional old machines, thus can satisfy requirements of factory's expansion.

Model	SF9010
Pallet type	Stringer pallet
Pallet width	700-1300mm
Pallet length	700-1500mm
Pallet height	100-150mm Stringer height min. 70mm
Stringer height	70-130mm
Stringer width	30-50mm, +/-3mm tolerance
Stringer quantity	2-4pc
Foot & roof board thickness	10-25mm
Productivity	800-1000pc/8h shift (For 1*1m pallet)
Nailing gun (Brand Everwin or other brand)	4pc N70 or N80 (Pls choose one) 1-3pcs nails adjustable, photoelectricity testing for the nailing position. Nailing gun distance manual adjust Nailing gun height electric adjust
Coil nails	1000-3000 nails/coil N70: Nail diameter 2.3-2.8mm, length 45-70mm N80: Nail diameter 2.5-3.3mm, length 50-80mm
Stacking table	Pneumatic table, max. Loading weight 500kg.
Gantry servo motor	1.5KW
Stack motor	0.75kw*2 Hydraulic motor 2.2kw
Total power	5.2kw
Voltage	380v 50HZ 3 phase
Air pressure	7-8 bar
Air tank volume in machine	0.3 cubic meters
Extra Air tank volume prepared by buyer	2-3 cubic meters
Air compressor required	Min. 2 cubic meters/min
Electric components	brand
Pneumatic components	Airtac brand
PLC, touch screen	Siemens
Machine dimension	14000*2900*3500mm
Packing size	5100*2230*2370mm 2700*2150*1770mm 2700*2220*1750mm
Machine weight	6840kg
Functions	Automatic nailing + stacking table+out-feeding table

Detailed Photos

Control cabinet	Nailing table
Separate control cabinet, Siemens touch screen and PLC.	Horizontal nailing table, pneumatic clamping devices and movable stoppers are all steel.

Electric pneumatic nailing gun	4pc nail support
N80 N70 for your choice.	1000-3000pc coil nail, inside diameter min. 25mm.

Hydraulic stacking table	Stringer feeding
max. Loading weight 1000kg.	3 or 4 stringers available.

Optional 4-sided corner cutter	Optional Heat treatment stamping table
Cut straight corner only.	Each side can have 1-2 stamping heads.

Control software	Automatic stringer feeding system,
Our own design, easy and convenient to operate.	Automatic stringer feeding system, stinger quantity adjustable from 2-4pcs Quick adjustment for stringers distance.

Sensor	4pcs pneumatic nailing guns
Sensor control nailing position, help customer producing standard qualified pallet, or program memory mode nailing positon, for time saving.	4pcs pneumatic nailing guns, position is movable, can assemble 3 or 4 stringers pallets.

Related Products

SF1000	Wooden Pallet Production Line
SF2000	Wood Pallet Mat Nailing Machine
SF9022	Wood Pallet Legs Nailing Machine
SF9025	Stringer Wood Pallet Making Machine
SF9010	Stringer Wood Pallet Nailing Machine
SF9026	Stringer Wood Pallet Making Machine
SF7013	Double Heads Notcher
SF7030	Wood Pallet Chamfer Machine
SF7041	Pallet Round Corner Cutter Machine
SF6060	Wood Cross Cut Off Saw
SF6021	Wood Double Heads Trim Saw Machine
SF8005	Multi Heads Trim Saw

Certifications
Packaging & Shipping
normally packed with plastic film, then load into container.
Company Profile
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback.
FAQ
Q, Can this machine make Euro/block pallets?
A, Can't, block pallet block and board area nail length different, and nail pattern normally not in one line, and the pneumatic nailing gun will easy broken.
So we don't recommend.
Q, Can the machine big bigger? Means make much bigger pallet
A, Yes, we can customize base on your requirements.
Q, Can this machine make two layers pallets?
A, Yes possible, setting in the machine easily.
Q, How long time for the machine production?
A, Normally 50-90 working days

Q, Is it difficult to maintenance the machine?
A, If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
