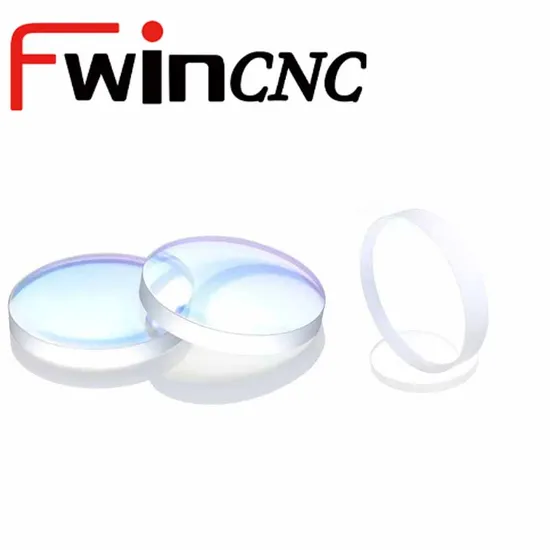

D27.9X1.5 D27 T4 D28 T4 Jgs1 Laser Protective Lens for Fiber Laser Raytools Head Bt240s Bm110

Product Description

Product Description
What is Handheld Laser Welding Machine Protective Mirror?
The protective mirror functions as a safety shield, preventing direct exposure to laser radiation and debris generated during the welding process.
It is suitable for a range of applications, including metal fabrication, automotive manufacturing, jewelry production, and more.

Production Name	Laser protective mirror
Material	Fused silica(FS),JGS1 Quartz
Surface Quality	60/40,40/20
Dimention Tolerance	+/-0.1mm
Size	36-55mm
Clear aperture	>98%
Power	0-6000w
Color	transparent
Coating	1064nm,T>99.5%
Application	Laser equipment ,Construction works etc

Product Parameters

Commonly used protective mirrors specifications
Coating color	Specifications	Quartz material	Applications	Applicable power
blue film	18*2	JGS2	handheld welding machine	1.5KW
	18*2	JGS1(high power)	handheld welding machine	3KW
	20*2	JGS2	handheld welding machine	1.5KW
	20*2	JGS1(high power)	handheld welding machine	3KW
	20*3	JGS2	handheld welding machine	2KW
	20*4	JGS2	handheld welding machine	3KW
	21.5*2	JGS2	upper protective mirror
	22.35*4	JGS2	cutting	4KW
	24.9*1.5	JGS2	upper protective mirror
	25.4*4	JGS2	cutting	4KW
	25.4*5	JGS2	cutting	5KW
	26.5*5	JGS2	cutting	5KW
	28*4	JGS2	cutting	4KW
	28*4	JGS1(high power)	cutting	8KW
	29.7*4.7	JGS2	cutting	4KW
	30*1.5	JGS2	welding	1.5KW
	30*2	JGS2	welding	3KW
	30*4	JGS2	welding	6KW
	30*5	JGS2	cutting	5KW
	30*5	JGS1(high power)	cutting	10KW
	34*3	JGS2	cutting	3KW
	34*5	JGS2	cutting	5KW
	34*5	JGS1(high power)	cutting	12KW
	36*2	JGS2	welding	3KW
	36*3	JGS2	welding	4KW
	36*5	JGS2	cutting	5KW
	37*7	JGS2	cutting	6KW
	37*7	JGS1(high power)	cutting	15KW
	38.1*1.5	JGS2	upper protective mirror
	40*5	JGS2	cutting	5KW
	40*5	JGS1(high power)	cutting	12KW
	50*2	JGS2	welding	6KW
	50*4	JGS2	cladding	10KW
	50*5	JGS2	cladding	12KW
	55*1.5	JGS2	welding	6KW
	55*1.5	JGS1(high power)	welding	12KW
	134*3	JGS2	welding	6KW
	134*3	JGS1(high power)	welding	12KW
yellow film	28*4	JGS2	cutting	4KW
	30*5	JGS2	cutting	5KW
	34*5	JGS2	cutting	5KW
	37*7	JGS2	cutting	6KW
	40*2	JGS2	welding	6KW
	40*5	JGS2	cutting	5KW
	50*2	JGS2	welding	6KW
	55*1.5	JGS2	welding	6KW

Handheld Laser Welding Machine Protective Mirror Features: High-quality material: Constructed with premium materials, ensuring durability and resistance to high temperatures. Optical precision: Offers precise optical characteristics, enabling clear visibility and accurate laser beam alignment. Anti-reflection coating: Equipped with a special coating to minimize light reflection, maximizing laser energy transmission. Stable protection: Protects the lens and other components from debris and sparks generated during the welding process. Easy maintenance: Designed for easy cleaning and replacement, ensuring efficient operation and minimal downtime. Detailed Photos
The focusing lens plays a crucial role in converging the laser beam to a specific focal point. It enables precise and controlled laser cutting, engraving, or marking applications by concentrating the laser energy at the desired spot.
They are made from special materials that are transparent to visible light but absorb or reflect laser radiation. Laser safety windows are commonly made of glass or acrylic and are available in standard sizes for use as viewing windows, or customized to fit specific applications, like optical table enclosures.
The focusing lens plays a crucial role in converging the laser beam to a specific focal point. It enables precise and controlled laser cutting, engraving, or marking applications by concentrating the laser energy at the desired spot.

Packaging & Shipping

Installation Instructions

It is forbidden to touch both side of the lens directly with your hands when replace the protective lens/safety windows.
Pls wear gloves,hold the slide parts of the lens.

FAQ

Question : How about your after service?
Answer : Technical support by phone, e-mail or MSN around the clock.
Question : How can we install the consumables?
Answer : Friendly English version manual and operation video CD disk.
Question : How do I choose the right consumables for my machine?
Answer : According to your needs and budget, we will provide the best answer for your efficient production.
Question : How about the payment terms?
Answer : 30% T/T for deposit, 70%T/T paid before shipping.
Question : When can I get the price?
Answer : We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Question : Can I get a lower price if I order large quantities?
Answer : Yes, once the order is confirmed, you will enjoy our factory price.
Question: Which port is the nearest from your company?
Answer : The Qingdao port is the nearest
Question: Can I have a visit to your factory before the order?
Answer : Yes, look forward to communicating and cooperating with you!
