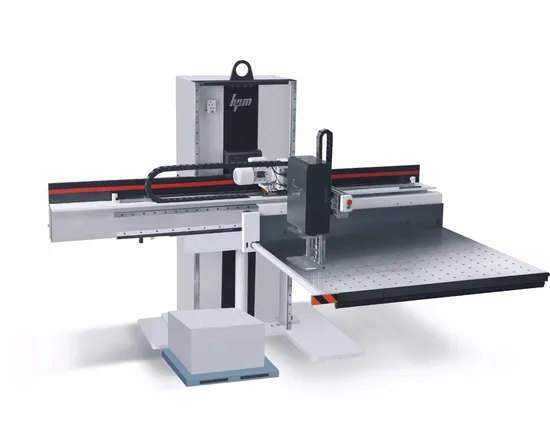

Hot Sale Paper Loader Aligning Stacker Machine Fully Automated Paper Loading Machine
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
QZ1450F /QZ1650F
Driven Type
Electric
Certification
ISO9001, ISO, CE
Automatic Grade
Manual
Condition
NEW
After-Sales Service Provided
Auxiliary Equipments
Type
Auxiliary Equipments
Loading Pattern
Paper Front
Suitable for Paper Cutting Machinee
115 130 137 168
Table Dimension (L*W)
1300X1600
Max. Loading Height
1600
Transport Package
Export Standard Wooden Case
Specification
QZ1450F /QZ1650F
Trademark
HPM
Origin
China
HS Code
8441100000
Production Capacity
1000 Unit/Year
Product Description
QZ1450F /QZ1650F
Machine Performance
1.The paper unloader can be used in conjunction with program-controlled paper cutters, lifters, paper breakers and air cushion workstations to form a cutting line, which can automatically complete the cutting, feeding and unloading, sorting, handling and stacking of paper, with many features such as high production efficiency, low operating labour intensity, short auxiliary production time and reduced labour costs.
2.It greatly facilitates the feeding and unloading of paper stacks during the cutting process. The high quality stacking function provides the necessary prerequisites for future printing or folding processes, saving time and effort. The fully automatic paper size adjustment function guarantees simple operation.
Configuration Listing
| No. | Name | Brand, specification & model |
| 1 | Sensor | FOTEK |
| 2 | Air Switch | TE |
| 3 | AC Contactor | TE |
| 4 | Button | TE or Eton |
| 5 | Platform servo motors | Platform Walking(Inovance) |
| 6 | Servo Driver | Walking Control(Inovance) |
| 7 | Servo motor | Pick-up part(Inovance) |
| 8 | Photoelectric Sensor | Detecting the height of paper stacks(LEUZE) |
| 9 | Switch Power | TE |
| 10 | Power Switch | CANSEN |
| 11 | Miniature Relay | TE |
| 12 | Combination valves | Hydraulic Part(WAISN) |
| 13 | Air cylinder | Catch paper part(AirTAC) |
| 15 | Linear Guider | High accurate linear guides |
| 16 | Display screens | MCGS |
Technical Parameter
| XZ1450F-2 | XZ1650F-2 | |
| Plate Size (W×L)mm | 1050×1800 | 1300×2040 |
| Max.Paper size (W×L)mm | 1010×1450 | 1270×1650 |
| Min.Paper size (W×L)mm | 300×400 | 300×400 |
| Max.Layer height(with plate)mm | 1600 | 1600 |
| Max.Layer height mm | 165 | 165 |
| Min. table height from the floor mm | 150 | 150 |
| Max.Layer weight Kg | 400 | 450 |
| Pressure setting MPa | 0.35-0.4 | 0.35-0.4 |
| Air Demand MPa | 0.6 | 0.6 |
| Air supply consumption L /min | 3 | 3 |
| Rated voltage V | 380/220 | 380/220 |
| Power supply mode | Three-phase five-wire system | Three-phase five-wire system |
| Gross Power Kw | 5.8 | 5.8 |
| Min.grams of paper g | 50 | 50 |
| Unloader time S | 25-35 | 25-35 |
| Net Weight KG | 2300 | 2400 |
| Gross Weight KG | 2450 | 2550 |
| Machine Size (WXLXH)mm | 3920×2100×2060 | 4330×2350×2060 |
| Packing Size (WXLXH)mm | 4100×2380×2210 | 4300×2380×2210 |
| Hydraulic drive for lifting and lowering, smooth movement, low noise, long life and low maintenance costs | ||
| The recommended power of the air compressor alone is 2.2Kw | ||
