Handheld Unmanned Aerial Vehicle Detection and Positioning Equipment for Visual Data Analysis, Networking Intercom

Product Description

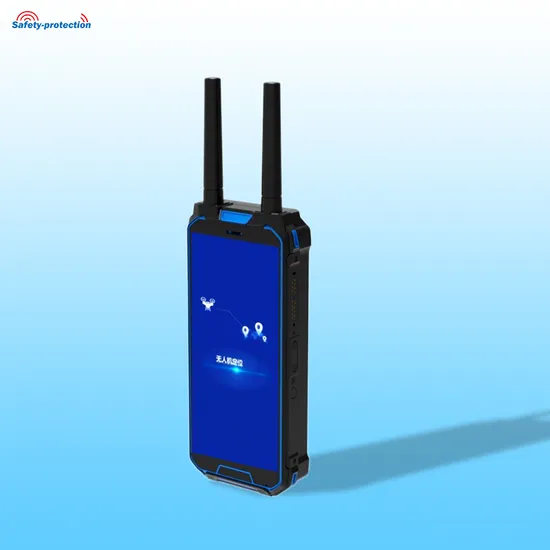

Function Introduction Discover the forefront of drone detection technology with the TJ-343 - a state-of-the-art, single-soldier portable device. This innovative equipment merges cutting-edge functionalities including drone spectrum detection, advanced protocol parsing, and RID identification. With the ability to provide instantaneous detection and alerts, it effortlessly tracks drones and accurately pinpoints both drones and their operators, offering precise real-time trajectory tracking.
Designed with a sleek, compact structure, the product is effortlessly portable and boasts exceptional battery longevity. It is a perfect fit for low-altitude security missions during major event protection, security operations, public safety patrols, counter-terrorism in special forces, safeguarding *** hubs, monitoring borders, airports, energy plants, and much more, ensuring comprehensive security coverage in diverse environments.
Functional characteristics 1) UAV positioning [1] : A single machine can locate the location of the UAV, which can be displayed in the form of "UAV icon" on the electronic map interface.
2) Flying hand positioning [2] : The position of the remote control (flying hand) can be located in a single machine, which can be presented in the way of "remote control icon" on the electronic map interface.
3) Detection and recognition [3] : With spectrum detection function, the models can be identified including common models such as DJI and Daotong, as well as a variety of models such as homemade traversal machine and WiFi machine.
4) FPV detection: It can detect and identify the homemade traversal aircraft and analyze its first-view flight picture in real time.
5) Pilot position navigation [4] : The system can plan and search the action route of the drone operator and provide "one-click position navigation" function.
6) Unique identification [5] : It can identify the unique serial number (SN) of DJI series (using OcuSync) drones, RID protocol drones, and 2WIFI drones.
7) Trajectory tracking [6] : multiple UAV flight trajectories can be displayed simultaneously on the electronic map interface.
8) Multi-dimensional information monitoring [7] : It can display the current UAV model, position information (latitude and longitude), speed, altitude and pilot position (latitude and longitude) in real time in the detection list bar.
9) Whitelist [8] : The whitelist list can be set, and no alarm will be generated when the system detects the UAV in the whitelist.
10) RID monitoring [9] : With RID remote identification function, support for a variety of standard protocols.
11) Intrusion alarm: When the intrusion of the drone is detected, the device will alarm by sound and vibration.
12) Track playback: Support historical track playback function, assist security personnel to analyze historical UAV flight data.
13) Detection records: The detection record list can retain the historical detection records, including the UAV serial number, model, frequency and other multidimensional information.
14) Visual data analysis: Support UAV detection and flight data statistical analysis, can be displayed through a graphical interface.
15) Networking intercom: The device can be connected to the wireless network, supporting real-time intercom function between devices. (Optional function)
Note: The locatable UAV in [1]-[8] is a DJI series model using OcuSync image transmission mode.
[9] GB 42590-2023, ASTM F3411 Remote ID, ASD-STAN prEN 4709-002
Basic parameters

Detecting frequency band	100MHz~6GHz
Detecting radius	1.5~2km (urban environment) 2-3km (open environment)
response time	3~5s
Positioning range	1-2km (urban environment) 2-3km (open environment)
Detection quantity	≥ 10 sorties (simultaneously)
Battery life	3~4h
