300mm Fully Automatic High Speed Napkin Paper Production Line with Auto Transferring

Product Description

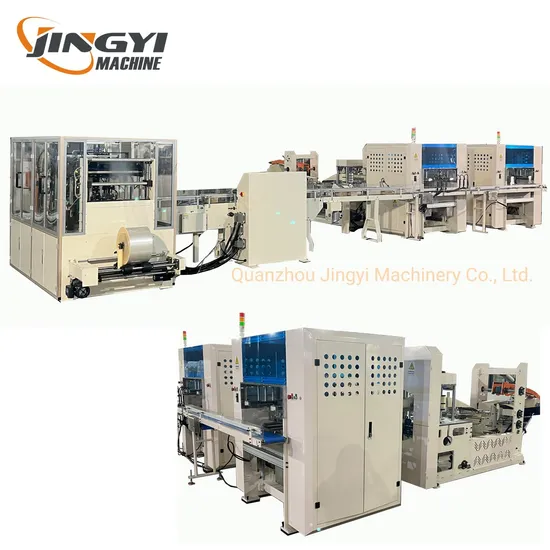

300mm Fully Automatic High Speed Napkin Paper Production line with Auto Transferring
Machine outline:
This is a machine specially for high-grade napkin paper embossing, folding and color printing, folded the paper into a square or rectangular shape. With clear embossing, bright color printing, overlay accuracy, high speed and stable.
Main Technical Parameter:

Machine model	JY-CJ--200-400 high-speed napkin machine
Layers of the paper	1-2 layers 15 - 21 g/ m², 1 layer paper need ≥19g
Folding Type	1/4
Product unfolded size	200*200-400*400 mm (please confirm the size)
Product Folded size	100*100~200*200±2mm (Width is adjustable)
Jumbo roll diameter	≤Φ1200mm
Jumbo roll inner diameter	76.2mm
Production Speed	1000-1200pcs/min
Color printing	Flexible printing1-4 colors, ceramic anilox roll,sealed ink box (could be customized)
Embossment unit	Steel to paper roller, can change as steel to felt roller, steel to rubber roller, steel to steel roller
Requested power	3~5kw (according to machine model)
Overall size (m)	4.5*1.0*1.5-7*1.5*2
Weight of equipment	1500kg-3000kg

1. Themain machine structure: wallboard structure.
2. The host drive: synchronous toothed belt drive, a flat belt conveying.
3. The control mode: frequency control of motor speed
4. electrical controlling system: INVT
5. Broken paper features: embossed cut paper stop position
6. Blade sharpening method: position manual adjustment, the pneumatic; automatic sharpening
7. web guide: with web guider
8. Counting: electronic counter, pneumatic hop
9. Rear frame feeding: Automatic feeding,Type wide belf feeding, 1.2 meters in diameter can be put on the raw material
10. Power: 380V,three-phase four wire. Add ground
11,separating fold function: using invt PLC program control and electronic pneumatic folding
12,Folding principle: the directional distribution, collection and counting position location points fold pattern
13,fold Settings: points fold number can be adjusted, total height less than 120 mm, two-way steering function
14,the whole machine with automatic counting and transfering unit, which can directly connect with the automatic pakcing machine, save labor cost and time, working more efficienty.
Machine Function & Character: The whole machine is with timing belt controlling system. This machine is mounted with two-color water printing ink system, use professional color printing anilox sting ink roller, which can print various beautiful logo or patterns. The printing unit adopts flexible printing. The printint plates can be changed accroding to customers' requirement, easy for changing and operation. Jumbo roll is fed into smooth compress unit through timing belt and then fed into embossment unit after smooth compressing and color printing. Among jumbo roll, smooth compressing and embossing, they are all equipped with tension adjusting unit. With electrical auto counting unit, can count the napkin papers qty according to different requirements, then dislocation row of output, easy for packing. Can do with 1/4 or 1/6 or 1/12 and other different shapes napkin paper, cutting through the band saw blade, the band saw blade can do with auto sharpening.
Our workshop:
About Package and shipping:
About Us:
Quanzhou Jingyi Machinery Co.,ltd is professional manufacturer for paper machines:
1) Toilet Paper Machine and kitchen towel machine (1.2m--2.8m width of jumbo roll);
2) Facial Tissue Machine (2-14 lanes);
3) Napkin Paper machine;
4) Hand Towel Paper Machine;
5) Handkerchief Paper Machine;
6) All kinds of Paper Cutting and Packing Machine.
Our Service:
Pre-Sale Services: We will reply your inquiy within 24 hours. According to your actual situation and budget, we will provide professional consultation and best solution with strong technical support.
After-Sales Service:
1.We will send the engineer or technician to your factory for installation, debugging and training the workers. Also welcome you come to our factory for learning the machine operation.
2.Warranty: One year guarantee, service for ever. Our technical team will give you 100% rest assured global presence service if necessary.
3.Wearing parts of machine will be sent to customers with a good preferential price.
