Online Service EDM Machine High Speed Cutting Machine< Br /> CNC Wire

Product Description

Product Overview

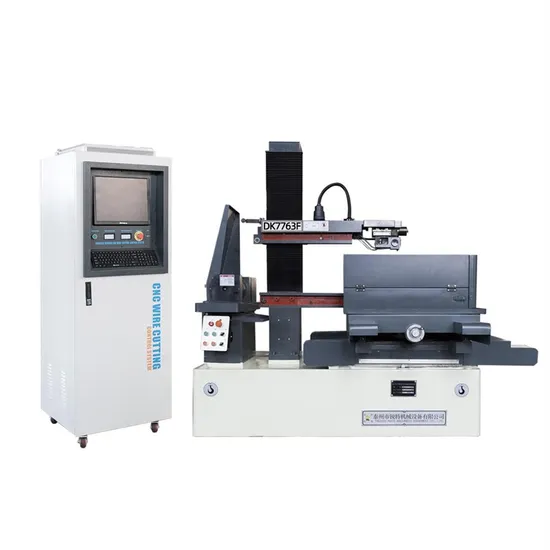

Machine model	DK7763F	Total machine power	1.5kv
CNC or Not	CNC	Minimum feed increment	0.001 mm
Machinery Test Report	Provided	Pulse width adjustable range	15-150 us
Brand Name	Ruite	Wire speed	11.5 m/s
Warranty	1 Year	Input power	3N-50Hz 380-220 v
Machine Type	Wire EDM	Precision	0.015 mm

Product Specifications

odel	Worktable travel(mm)	Worktable size(mm)	Max. cutting thickness(mm)	Max. load(kg)	Dimensions(mm)	Weight(kg)
DK7720	200*250	490*380	200	100	1200*900*1300	800
DK7725	250*320	520*390	300	200	1450*900*1500	1000
DK7735(32)	350(320)*450(400)	730*490	500	300	1400*1100*1600	1100
DK7745(40)	450(400)*550(500)	810*570	400	500	1600*1200*1600	1400
DK7745F(40F)	450(400)*630	950*600	400/600	600	1600*1580*1600	1600
DK7755(50)	550(500)*650(630)	950*650	700	700	2000*1500*1900	1800
DK7755F(50F)	550(500)*800	1140*650	700	700	2000*1650*1900	2000
DK7763	630*800	1140*750	700	1000	2100*1700*2050	2400
DK7763F	630*1000	1350*750	700	1200	2250*1850*2050	2800
DK7780	800*1000	1350*980	900	2000	2400*1900*2350	4000
DK7780F	800*1200	1600*1050	900	2400	2550*1950*2400	4500
DK77100	1000*1200	1600*1100	1000	2600	2850*2500*2500	5200
DK77100F	1000*1400	1800*1250	1000	2800	2950*2050*2500	5800
DK77120	1200*1400	1800*1350	1000	3000	3050*2750*2500	7500
DK77120F	1200*1600	2000*1500	1000	3500	3100*2850*2500	8400
DK77160	1600*1800	2000*1700	1000	4000	3250*3000*2500	10000

Product Category
Successful Project
Applicable Industries Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Hot Products
DK7720
DK7735
DK7745
DK7745F
DK7750
DK7763
Company Profile
Taizhou Ruite Machinery Equipment Co., Ltd established in 2017, has obtained 3A integrity enterprise, ISO9001, SGS, etc. Ruite will always adhere to the purpose of high-tech quality and efficient service, and continue to provide high-quality services for enterprises at home and abroad with first-class products and reasonable prices.
Innovative Ruite CNC is committed to providing customers in various industries with overall solutions for wire cutting, including customized production of machine tools, installation and life-long technical services, to achieve a win-win situation between enterprises and users. The company's "Ruite" DK77 series of medium and fast wire cutting machine tools are known for "large taper, large stroke, high efficiency, high precision, new structure, low loss, more energy-saving, and more environmentally friendly". The products are selling well in Europe and America. We sincerely welcome people from all walks of life to come and visit.
Packing and shipping
FAQ
Q1:Could I visit your factory?
A:Of course,yes!Warmly welcome all customer from all over the world to visit our factory.
Q2:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q3:What about the price?
A:We promise the price we offer is lowest if same application,only to enlarge the market share.And given you cost price for consumable parts.
Q4:Why choose you?What is the difference between you and other Chinese supplier?
A:We Specializing in the search and development, testing, manufacturing and sales of CNC numerical control system for wire-cutting electric discharge machine tools, wire-cutting wire cutting machine tools, jade wire sawing machines and electrical processing equipment. All our products with CE certification.
Q5:I`m worried about after-sales service!
A:Warranty is one year.
Take a photo or video of the problem and send it to us. After we check and confirm the problem, we will provide you with a satisfactory solution within 24 hours.
