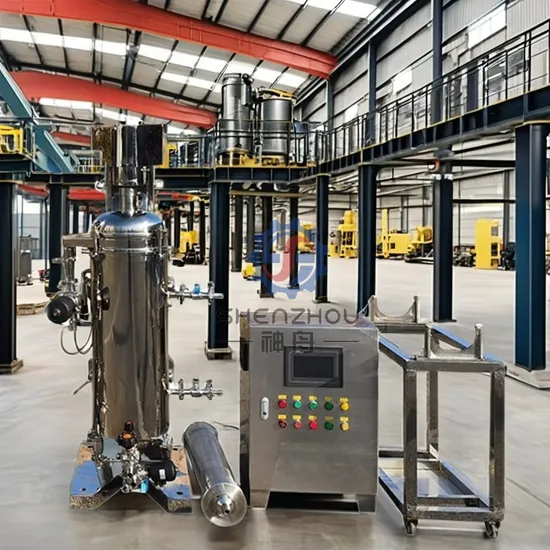

Gq/GF105 Tubular High Speed Chemical Waste Liquid Separation Centrifuge

Product Description

Product Description GQ/GF105 Tubular High Speed Chemical Waste Liquid Separation Centrifuge High Speed. Flexible. Resistant.
High-Speed Tubular Centrifuges are mainly used to separate smallest particles from fermenter suspensions. Suspension is fed into the rotor from below while the centrifuge is running. The components of the suspension are stratified in the rotor according to their density. While the liquid is continuously discharged via the discharge trays, the solid remains in the rotor and is harvested manually.
This centrifuge is currently available as a basic machine in a cast housing, in a GMP-compliant stainless steel version , as an explosion-proof version , also in stainless steel and in a CIP version .
This type of centrifuge can also be installed in a trailer e.g. for water testing, which can be used anywhere. We are happy to support you in planning the trailer using our centrifuge.
Product Paramenters

Type Item		GQ/GF57	GQ/GF80	GQ/GF105	GQ/GF115	GQ/GF125	GQ/GF150
Bowl	ID (mm)	57	75	105	113-115	125	142
	Height(mm)	240	450	730/740	730/740	730/740	730/740
	Sedimentation volume(L)	0.38	2.67	6	7	8	> 10
	Max Speed (r/min)	30000	19000/ 21000	17000	16500	15500/ 17000	14700/ 16000
	Max Separation factor	28500	16500/ 20000	17000	17000	17000/ 20000	17000/ 20300
	Water Capacity (kg/h)	267	670	1600	1800	2200	3000
	Inlet Nozzle Diameter (mm)	2/2.5/3	2/3/4	4/6/8	4/6/8	4/6/8	6/8/10
	Material Inlet Pressure (Mpa)	> 0.05
Motor	Model	Variable high speed	three phase two pole motor
	Power(kw)	0.75	1.5	2.2	3.0	3.0	3.0
	Dimension(mm)	310 x 280 x 530	400 x 450 x 1300	500 x 600 x 1650	500 x 600 x 1650	500 x 600 x 1650	500 x 600 x 1650
	Machine Weight (kg)	80	300	480	485	490	510

Working principle of Tubular Separator
Consist of the machine cover, driving device, drum, liquid catch tray, the liquid inlet and bearing seat, this separator with high running speed, belongs to sedimentation separator. The upper drum is a flexible shaft, while the lower is damping floating bearing. The main shaft is connected by a coupling buffer and a passive wheel. Motor transmit power from the transmission belt and tension wheel to passive wheel, to drive the drum rotate around its own axis with high-speed, and thus form a strong centrifugal force field. All the materials are fed from liquid inlet under the bottom, and flow upward along the drum wall by centrifugal force fluid. During this process, the dense liquid phase forms the outer ring, and the small liquid phase forms the inner ring, which separately flow to respective liquid outlet mounted on the upper drum.
When the thickness of the sediment affect the liquid phase clarification or the capacity of the rated slag weight in the drum, the dregs of the drum wall should be removed manually after the shutdown.
GF separation tubular centrifuge is used for liquid-liquid separation and emulsion separation with trace amount solid phase. The main function is to process the three-phase separation of liquid (light liquid), liquid (heavy liquid) and a small amount of solid, which is referred to as liquid-liquid-solid separation, or liquid-liquid separation. The common applications include vegetable oil, animal oil for oil-water separation and blood separation (pig blood, chicken blood, duck blood, cow blood and other animal blood). GQ clarifying tubular centrifuge is used for the separation of suspension containing solid concentration less than or equal to 1%. Its main function is to process the separation of liquid and solid phases. The separated solid phase is deposited on the inner wall of the bowl and needs to be removed manually. Common applications include clarification and concentration in Chinese medicine, water extraction or alcohol extraction, removal of large particle impurities from ink, separation of fermentation broth of biological products, such as various fermented low-density bacteria of vaccine, etc.
Details
Application: Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs plants extracts, various medicine liquor, liquid medicine, oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap, etc.
