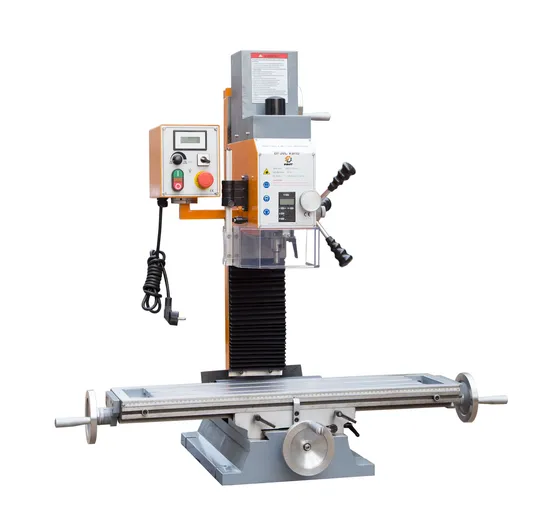

Vertical ZAY7025V Variable Speed Milling and Driling Machine

Product Description

Product Description
Milling and drilling machine main features:
1. With micro feed handwheel;
2. High precision bored and honed milling head;
3. Tilting and swieveling head;
4. Geared drive, lower noise;
5. Adjustable stops on table.

MAIN SPECIFCATIONS	ZAY7025V
Drilling capacity	25mm
Max.face mill capacity	80mm
Max.end mill capacity	25mm
Sleeve stroke	50mm
Working table size	500(700)X180mm
X axis travel	290/490mm
Y axis travel	180mm
Z axis travel	360mm
Motor power	750W
Max.distance spindle to table	355mm
Spindle taper	MT3
Spindle speed	50-3000rpm
Net weight/gross weight	130/158kg
Packing size	620X720X910mm

Guarantee Terms: Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
Detailed Images
Standard accessories:
Speed dislay
Morse taper MT2/B16
Draw in rod M10
Drill chuck 0-13mm
Tool box and tools
Optional accessories:
Coolant bump
Milling vice
Milling chuck
End mill cutter
Stand with chip tray
