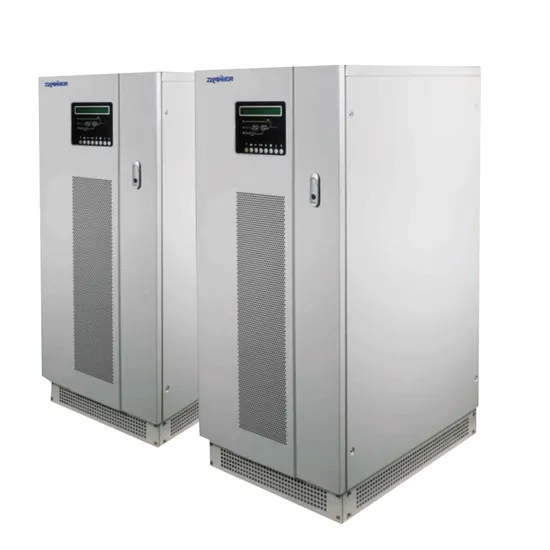

Low Frequency Three Phase 10kVA-200kVA UPS with Isolation Transformer Inside & Stabilizer

Product Description

GP33 series Low frequency Online UPS is most advanced and new intelligent digital UPS by ZLPOWER, range from 10kva to 200kva, three phase input and output.
It is combined with high speed MCU, advanced CPLD technology, the sixth generation low consume large power, IGBT and static switch.
Widely used in IDC data exchange center, telecommunication, data center, banks, negotiable securities, traffic, arms, security, electronics, industry, large enterprises and so on.
Main Features:
1. Intelligent inspect and monitor UPS systems every second
2. The sixth generation IGBT inverter technology
3. High definition touch screen LCD display and LED indicators, can show directly UPS status and operation, data records in table format, and events records.
4. Adopts knock-down modular design, easy to maintain and save resources much; It is with new advanced turbofan which can release heat well and save energy; It also use non-circumfluence controlled circuit, can save electric much; GP33 UPS adopts green commute and inverter technology, ensure to provide clear energy for users; Its advanced digital circuit technology let whole UPS with 80% more life than before.
5. Excellent load characters can fulfill with suddenly change load from 0 to 100%, and no need to invert to bypass, ensure output stable and reliable.
6. Well-equipped protection function, including alarm function and excellent input and output under voltage overflow protection, input surge protection, phase failure protection, battery overcharge and over discharge protection, output overload short circuit protection, over heat protection and so on.
7. Three phase can equal stable voltage and control separately, in order to control instantaneous overload degree of equal, realize output imbalance 100% load.
8. Optional input harmonic filter or Twelve-pulse rectifier can restrain input harmonic pollution efficiently, improve UPS input power factor, and minish input harmonic current.
9. Optional battery inspection module, can test specification of every battery, and show on display. If battery faulty, will alarm immediately and inform administrators.
10. Special set: Can set UPS work status according to requirements of electric. User can choose from UPS operate mode, ECO save energy operate mode and EPS operate mode.

Model

GP3310 ~ GP33200 series Low Frequency Online UPS

Capacity (VA)

10K

15K

20K

30K

40K

60K

80K

100K

120K

160K

200K

Noninal output capacity

8KW

12KW

16KW

24KW

32KW

48KW

64KW

80KW

96KW

128KW

160KW

Operate type

Double conversion low frequency online type

Input

voltage

220V/380, 230/400, 240/415V, ±25%

Phase

Three phase +N+G

Frequency

50Hz/60Hz±5%

Input power factor

0.95(with input filter)

Soft start

0-100% 5sec

Output

Voltage

220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load)

Phase

Three phase +N+G

Frequency

50/60Hz (1±5%, AC mode), 50/60Hz (±1%, Battery mode)

Power factor

0.8

Output wave

Pure sine wave

Distortion

Linear load <3%, non linear load<5%

Battery voltage

Standard battery voltage

360V/384V

Floating charge

405V/432V

Terminal voltage

315V/336V

Charge current

1A-50A (Can calculate and set according to battery configuration software)

Maximum discharge current

28

42

56

85

113

169

225

282

338

381

507

Main Function

Active voltage change

0-100%±5%

Instant recover time

<10ms

Imbalance voltage

<±5%,<±1%( Balance load voltage)

Overload capacity

125%→10min,150%→1min

Static switch

Automatic

Protection

UPS over current, short circuit, battery low voltage, over heat

Cold method

Compel aeration ( temperature control mode)

Noise

60-65dB

Display

LED\LCD display

Communication port(Optional)

RS232, SNMP, dry-contact

Alarm

Alarm with buzzer and indicators

Environment

Temperature: 0-40C Humidity: 0-90%

Net weight

kgs

210

258

350

400

480

900

1100

1200

1250

1380

1520

Size

L*W*H (mm)

700×520×1100

800×600×1200

800×600×1500

1200×900×1600

2000×900×1800
