Factory Price 0-100MPa Stainless Steel Diaphragm Bourdon Tube Pressure Gauge for Hot-Water

Product Description

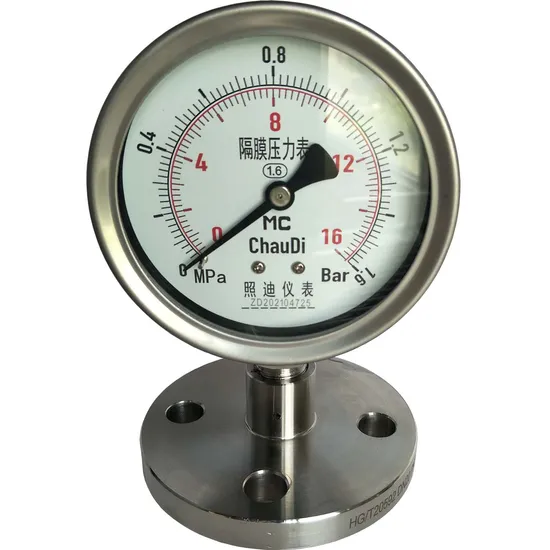

Factory price 0-100MPa Stainless steel diaphragm Bourdon tube pressure gauge for hot-water
Product Description
CHAUDI stainless pressure gauge are widely used for measuring the pressure of various fluid media with high corrosion proof and high temperature resistance in industries such as petroleum,chemcial,filber,power station,food.The meter is made of direct contact joint and pressure sensing element materials, icr18ni9t, ocr18ni12mo2ti and SUS316, and the structure is fully sealed.
Technical Detailes

Name	Stainless pressure gauge
Dials Size	2.5"(60mm) 4"(100mm) 6"(150mm) 8"(200mm)
Measure Range	-0.1-0-100MPa (KPa , Bar , PSI can be customized)
Accuracy	1..0 , 1.6 , 2.5
Medium	Liqudi , Gas , Oil , Water avaible
Case	sus304 sus316
elastic element	sus304 sus316
joint body	sus304 sus316
Movement material	sus304 sus316
Window	Oganic glass
Shockproof filling material	Glycerin 98% (silicone oil, fluorine oil or other types can be selected)
Working Temperature	-25 ~ 70 ºC (the shell is filled with liquid) ; -40 ~ 70 ºC (the shell is not filled with liquid)
weight	0.35Kg (60mm) ; 0.85Kg(100mm) ; 0.95kg (150mm)
Connection Type	Thread (NPT1/2 , G1/2 , G1/4 , M10*1 , M20*1.5...can be customized) Note: when there is special requirements for the thread of instrument joint, the user and the manufacturer shall negotiate to solve the problem

Why chose us:Question 1:How long will you give me reply?We will contact you with 2 hours.Question 2:Could i get samples?Yes,we have materials in stock to help you get the samples ASAP.Question 3:How about the quality?We have the certification ISO9001 CE SIL ROSH EX.Question 4:What about the price?You get what you pay for,we will give you best price with best quality products.Question 5:What aout the delivey time?We have materials in stock,Strong executive team to make sure you get the goods ASAP.Question 6:Could i visit your factoryYes,of course.
ShangHai ZhaoDi Automation Instruments co.,ltd is a professional company specializing in production automation instruments and matching. ZhaoDi has strong technical strength and researchs account over 40% of the total number of company, with well- developed prodection facilities and strong processing capacity .ZhaoDi product include flowmeter series,liquid level instruments series, temperature sensor series and pressure series and diaplay instruments and so on,. All products are certified with certification such as ROHS,ISO,CE,EX,etc
ZhaoDI products have been widely used in power,petro,chemical,metallurgy,papermaking,medicine,city heating,food,textile and sewage treatment industries.
ZhaoDi keeps on :Quality First,Faith First.we truely hope all domestic and foreige customers contact us freely and we will also develop more high quality and cheap product that meet you need.
Shanghai Zhaodi Instrument Co., Ltd. welcomes customers and friends from all over the world to inquire about products by email at any time. We provide 24-hour service, and the email inquiry will be immediately restored within 4 hours.
We have a good team that can provide you with high-quality standard product services, as well as non-standard customized services according to your requirements, as well as OEM services. Please feel free to email us for consultation.
