150m/Min PP Dry Laminating Machine with CE Laminator
| US$36,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GSGF1100A
Classification
General Laminating Machine
Application
Packaging Paper, Film Material, Color Printing
Driven Type
Mechanical
Automatic Grade
Semi-Automatic
Membrane Material
Plastic Film
Plastic Film Mulching Modes
Dry Laminating
Performance
Waterproof
Item
Fully Automatic High-Speed Dry Laminating Machine
Speed
120m/Min
Oven Length
9m
Water Cooling Roller
Yes
Automatic Material Collecting
Yes
EPC
Yes
Double Shaft
Yes
Tension
Automatic
Scarper
Weight
Quality
Good
Transport Package
No Packing
Specification
SGS, CE
Trademark
Deguang
Origin
China
HS Code
84778000
Production Capacity
50PCS/Month
Product Description
150mpm 2 layers Dry Laminating Machine
Technical Data:
| Model | GSGF-1100A model |
| Layers of complex | 2 Layers |
| Laminating width | 1100mm |
| Loading material's diameter | 600mm |
| Adjustable range of laminating linear speed | 50-120m/min |
| Max. adjustable temperature of dry oven | 80 ºC |
| Max. adjustable temperature of heat beat | 70 ºC -90 ºC |
| Tension ratio | ≤1/1000 |
| Total power | 101kw(Actually 70kw) |
| Weight | 9400kg |
| Overall dimensions (L×W×H)(mm) | 11500×2800×3200 |

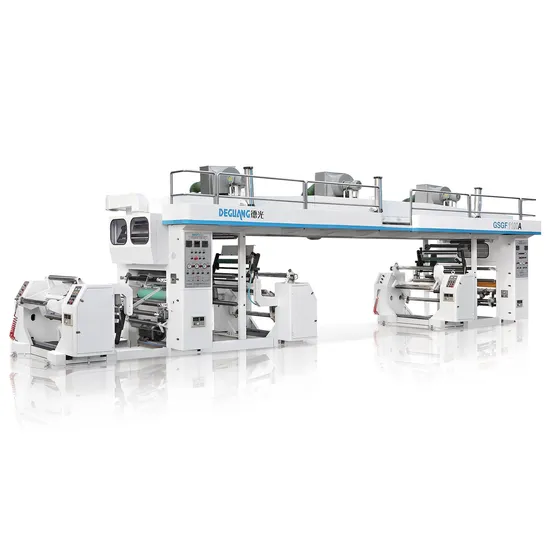

Main Picture:
Our Factory:
